FaberRudy2000Version3 Class Reference

Inherits AbstractCardiacCell.

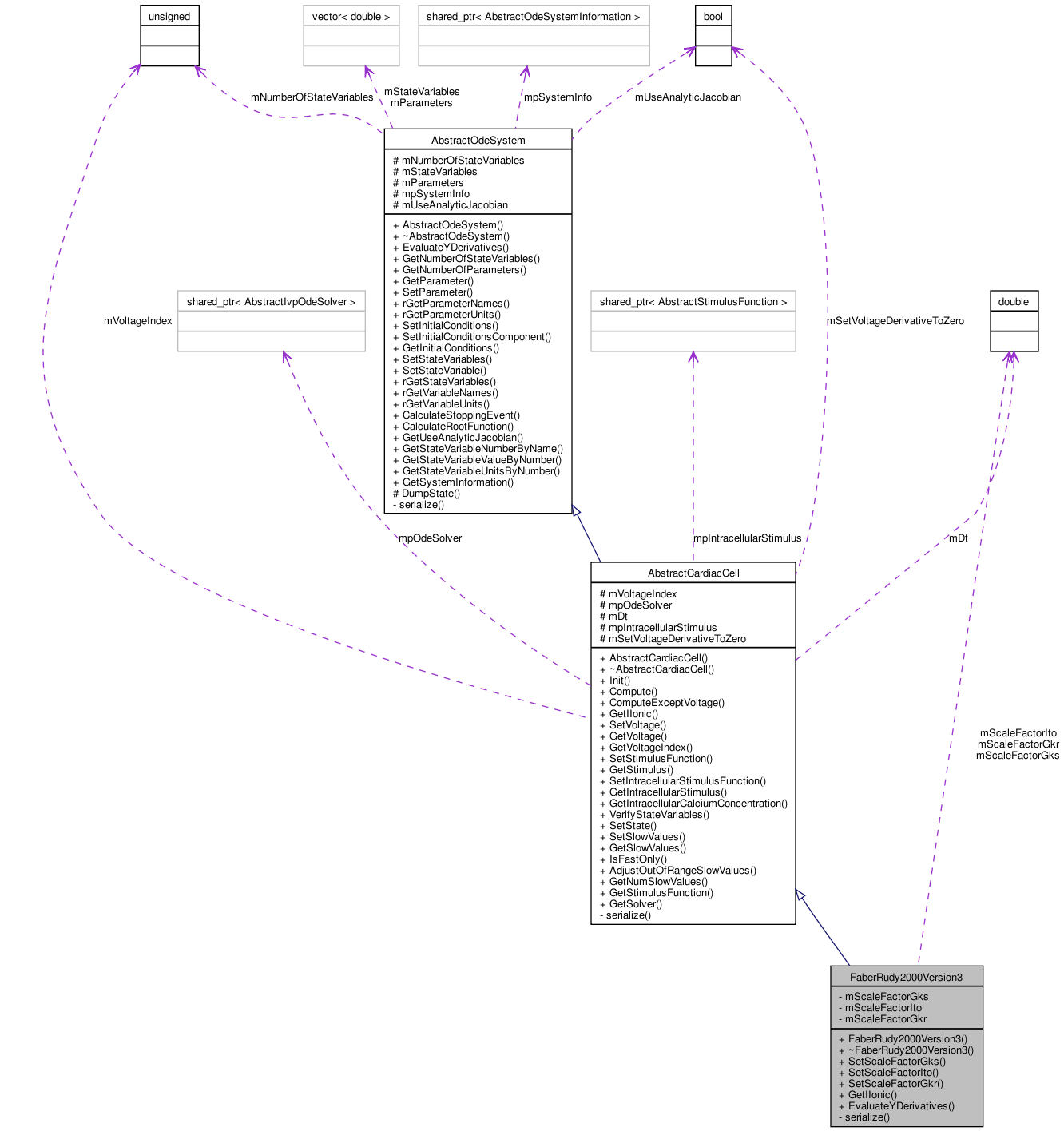

Collaboration diagram for FaberRudy2000Version3:

[legend]

List of all members.

Public Member Functions
	FaberRudy2000Version3 (boost::shared_ptr< AbstractIvpOdeSolver > pSolver, boost::shared_ptr< AbstractStimulusFunction > pIntracellularStimulus)
	~FaberRudy2000Version3 (void)
void	SetScaleFactorGks (double sfgks)
void	SetScaleFactorIto (double sfito)
void	SetScaleFactorGkr (double sfgkr)
double	GetIIonic ()
void	EvaluateYDerivatives (double var_environment__time, const std::vector< double > &rY, std::vector< double > &rDY)
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Private Attributes
double	mScaleFactorGks
double	mScaleFactorIto
double	mScaleFactorGkr
Friends
class	boost::serialization::access

---

Detailed Description

Definition at line 24 of file FaberRudy2000Version3.hpp.

---

Constructor & Destructor Documentation

FaberRudy2000Version3::FaberRudy2000Version3	(	boost::shared_ptr< AbstractIvpOdeSolver >	pSolver,
		boost::shared_ptr< AbstractStimulusFunction >	pIntracellularStimulus
	)

Constructor

Parameters:

	pSolver	is a pointer to the ODE solver
	pIntracellularStimulus	is a pointer to the intracellular stimulus

Definition at line 21 of file FaberRudy2000Version3.cpp.

References AbstractCardiacCell::Init(), AbstractOdeSystem::mpSystemInfo, mScaleFactorGkr, mScaleFactorGks, and mScaleFactorIto.

FaberRudy2000Version3::~FaberRudy2000Version3

(

void

)

Destructor

Definition at line 34 of file FaberRudy2000Version3.cpp.

---

Member Function Documentation

void FaberRudy2000Version3::EvaluateYDerivatives	(	double	var_environment__time,
		const std::vector< double > &	rY,
		std::vector< double > &	rDY
	)			[virtual]

Evaluate the derivatives of the state variables

Parameters:

	var_Environment__time	the current time, in milliseconds
	rY	current values of the state variables
	rDY	to be filled in with derivatives

Implements AbstractOdeSystem.

Definition at line 301 of file FaberRudy2000Version3.cpp.

References AbstractCardiacCell::GetStimulus(), mScaleFactorGkr, mScaleFactorGks, mScaleFactorIto, and AbstractCardiacCell::mSetVoltageDerivativeToZero.

double FaberRudy2000Version3::GetIIonic

(

)

[virtual]

Calculates the ionic current

Returns:

the total ionic current

Implements AbstractCardiacCell.

Definition at line 56 of file FaberRudy2000Version3.cpp.

References mScaleFactorGkr, mScaleFactorGks, mScaleFactorIto, and AbstractOdeSystem::rGetStateVariables().

template<class Archive >

void FaberRudy2000Version3::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Archive the member variables.

Parameters:

	archive
	version

Reimplemented from AbstractCardiacCell.

Definition at line 43 of file FaberRudy2000Version3.hpp.

void FaberRudy2000Version3::SetScaleFactorGkr

(

double

sfgkr

)

Set the scale factor for Gkr (might be useful for simulating LQT2)

Parameters:

sfgkr

Definition at line 50 of file FaberRudy2000Version3.cpp.

References mScaleFactorGkr.

Referenced by HeartConfigRelatedCellFactory< SPACE_DIM >::CreateCellWithIntracellularStimulus().

void FaberRudy2000Version3::SetScaleFactorGks

(

double

sfgks

)

Set the scale factor for Gks

Parameters:

sfgks

Definition at line 38 of file FaberRudy2000Version3.cpp.

References mScaleFactorGks.

Referenced by HeartConfigRelatedCellFactory< SPACE_DIM >::CreateCellWithIntracellularStimulus().

void FaberRudy2000Version3::SetScaleFactorIto

(

double

sfito

)

Set the scale factor for Ito

Parameters:

sfito

Definition at line 44 of file FaberRudy2000Version3.cpp.

References mScaleFactorIto.

Referenced by HeartConfigRelatedCellFactory< SPACE_DIM >::CreateCellWithIntracellularStimulus().

---

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCardiacCell.

Definition at line 35 of file FaberRudy2000Version3.hpp.

---

Member Data Documentation

double FaberRudy2000Version3::mScaleFactorGkr [private]

Scale factor for Gkr

Definition at line 32 of file FaberRudy2000Version3.hpp.

Referenced by EvaluateYDerivatives(), FaberRudy2000Version3(), GetIIonic(), and SetScaleFactorGkr().

double FaberRudy2000Version3::mScaleFactorGks [private]

Scale factor for Gks

Definition at line 28 of file FaberRudy2000Version3.hpp.

Referenced by EvaluateYDerivatives(), FaberRudy2000Version3(), GetIIonic(), and SetScaleFactorGks().

double FaberRudy2000Version3::mScaleFactorIto [private]

Scale factor for Gto

Definition at line 30 of file FaberRudy2000Version3.hpp.

Referenced by EvaluateYDerivatives(), FaberRudy2000Version3(), GetIIonic(), and SetScaleFactorIto().

---

The documentation for this class was generated from the following files:

• /tmp/release_2.0/heart/src/odes/ionicmodels/FaberRudy2000Version3.hpp
• /tmp/release_2.0/heart/src/odes/ionicmodels/FaberRudy2000Version3.cpp
