Cylindrical2dVertexMesh Class Reference

#include <Cylindrical2dVertexMesh.hpp>

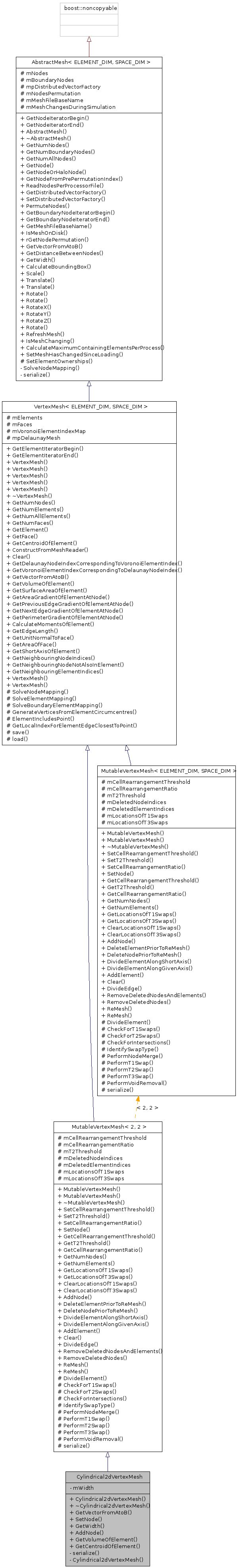

Inheritance diagram for Cylindrical2dVertexMesh:

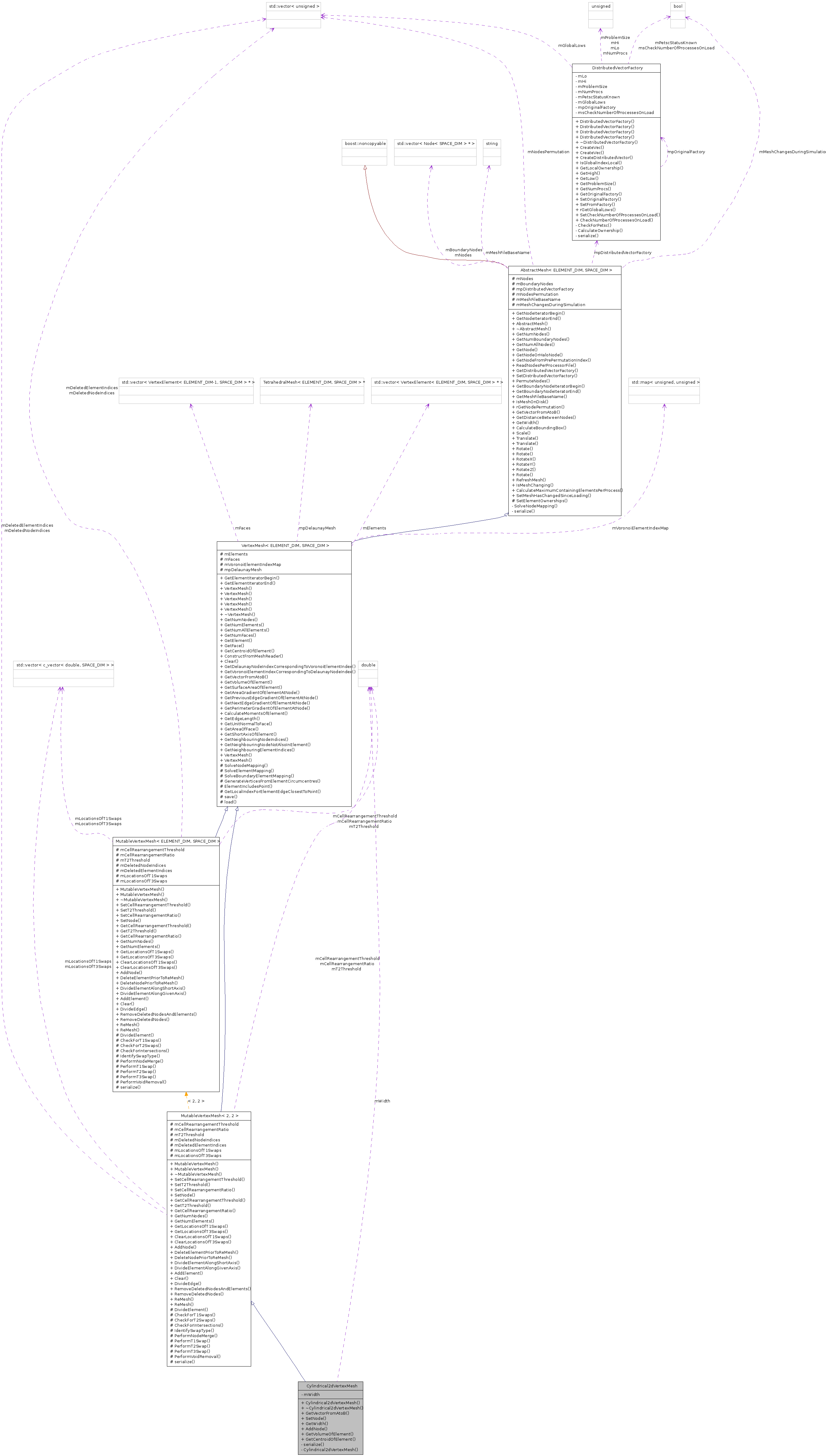

Collaboration diagram for Cylindrical2dVertexMesh:

List of all members.

Public Member Functions

Cylindrical2dVertexMesh (double width, std::vector< Node< 2 > * > nodes, std::vector< VertexElement< 2, 2 > * > vertexElements, double cellRearrangementThreshold=0.01, double t2Threshold=0.001)

~Cylindrical2dVertexMesh ()

c_vector< double, 2 > GetVectorFromAtoB (const c_vector< double, 2 > &rLocation1, const c_vector< double, 2 > &rLocation2)

void SetNode (unsigned nodeIndex, ChastePoint< 2 > point)

double GetWidth (const unsigned &rDimension) const

unsigned AddNode (Node< 2 > *pNewNode)

double GetVolumeOfElement (unsigned index)

c_vector< double, 2 > GetCentroidOfElement (unsigned index)

Private Member Functions

template<class Archive>

void serialize (Archive &archive, const unsigned int version)

Cylindrical2dVertexMesh ()

Private Attributes

double mWidth

Friends

class TestCylindrical2dVertexMesh

class boost::serialization::access

Detailed Description

A subclass of MutableVertexMesh<2,2> for a rectangular mesh with periodic left and right boundaries, representing a cylindrical geometry.

The class works by overriding calls such as ReMesh() and GetVectorFromAtoB() so that simulation classes can treat this class in exactly the same way as a MutableMesh<2,2>.

Definition at line 44 of file Cylindrical2dVertexMesh.hpp.

Constructor & Destructor Documentation

Cylindrical2dVertexMesh::Cylindrical2dVertexMesh ( ) [private]

Constructor - used for serialization only.

Definition at line 42 of file Cylindrical2dVertexMesh.cpp.

Cylindrical2dVertexMesh::Cylindrical2dVertexMesh	(	double	width,
		std::vector< Node< 2 > * >	nodes,
		std::vector< VertexElement< 2, 2 > * >	vertexElements,
		double	cellRearrangementThreshold = `0.01`,
		double	t2Threshold = `0.001`
	)

Default constructor.

Parameters:

	width	the width (circumference) of the mesh
	nodes	vector of pointers to nodes
	vertexElements	vector of pointers to VertexElements
	cellRearrangementThreshold	the minimum threshold distance for element rearrangment (defaults to 0.01)
	t2Threshold	the maximum threshold distance for Type 2 swaps (defaults to 0.001)

Definition at line 30 of file Cylindrical2dVertexMesh.cpp.

References MutableVertexMesh< 2, 2 >::ReMesh().

Cylindrical2dVertexMesh::~Cylindrical2dVertexMesh ( )

Destructor.

Definition at line 46 of file Cylindrical2dVertexMesh.cpp.

Member Function Documentation

template<class Archive>

void Cylindrical2dVertexMesh::serialize	(	Archive &	archive,
		const unsigned int	version
	)			`[inline, private]`

Archives the member variables of the object which have to be preserved during its lifetime.

The remaining member variables are re-initialised before being used by each ReMesh() call so they do not need to be archived.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from MutableVertexMesh< 2, 2 >.

Definition at line 66 of file Cylindrical2dVertexMesh.hpp.

References mWidth.

c_vector< double, 2 > Cylindrical2dVertexMesh::GetVectorFromAtoB	(	const c_vector< double, 2 > &	rLocation1,
		const c_vector< double, 2 > &	rLocation2
	)

Overridden GetVectorFromAtoB() method. This method evaluates the (surface) distance between two points in a 2D cylindrical geometry.

Parameters:

	rLocation1	the x and y co-ordinates of point 1
	rLocation2	the x and y co-ordinates of point 2

Returns:: the vector from location1 to location2

Definition at line 50 of file Cylindrical2dVertexMesh.cpp.

References mWidth.

Referenced by GetCentroidOfElement(), and GetVolumeOfElement().

void Cylindrical2dVertexMesh::SetNode	(	unsigned	nodeIndex,
		ChastePoint< 2 >	point
	)

Overridden SetNode() method.

If the location should be set outside a cylindrical boundary move it back onto the cylinder.

Parameters:

	nodeIndex	is the index of the node to be moved
	point	is the new target location of the node

Definition at line 69 of file Cylindrical2dVertexMesh.cpp.

References mWidth, ChastePoint< DIM >::rGetLocation(), ChastePoint< DIM >::SetCoordinate(), and MutableVertexMesh< ELEMENT_DIM, SPACE_DIM >::SetNode().

Referenced by AddNode().

double Cylindrical2dVertexMesh::GetWidth ( const unsigned & rDimension ) const [virtual]

Overridden GetWidth() method.

Calculate the 'width' of any dimension of the mesh, taking periodicity into account.

Parameters:

rDimension

a dimension (0 or 1)

Returns:: The maximum distance between any nodes in this dimension.

Reimplemented from AbstractMesh< ELEMENT_DIM, SPACE_DIM >.

Definition at line 89 of file Cylindrical2dVertexMesh.cpp.

References AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetWidth(), and mWidth.

unsigned Cylindrical2dVertexMesh::AddNode ( Node< 2 > * pNewNode )

Overridden AddNode() method.

Parameters:

pNewNode

the node to be added to the mesh

Returns:: the global index of the new node

Definition at line 104 of file Cylindrical2dVertexMesh.cpp.

References MutableVertexMesh< ELEMENT_DIM, SPACE_DIM >::AddNode(), Node< SPACE_DIM >::GetPoint(), and SetNode().

double Cylindrical2dVertexMesh::GetVolumeOfElement ( unsigned index ) [virtual]

Overridden GetVolumeOfElement() method.

Parameters:

index

the global index of a specified vertex element

Returns:: the area of the element

Reimplemented from VertexMesh< ELEMENT_DIM, SPACE_DIM >.

Definition at line 115 of file Cylindrical2dVertexMesh.cpp.

References VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetElement(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNodeLocation(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), and GetVectorFromAtoB().

Referenced by GetCentroidOfElement().

c_vector< double, 2 > Cylindrical2dVertexMesh::GetCentroidOfElement ( unsigned index ) [virtual]

Overridden GetCentroidOfElement() method.

Parameters:

index

the global index of a specified vertex element

Returns:: (centroid_x,centroid_y).

Reimplemented from VertexMesh< ELEMENT_DIM, SPACE_DIM >.

Definition at line 150 of file Cylindrical2dVertexMesh.cpp.

References VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetElement(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNodeLocation(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), GetVectorFromAtoB(), and GetVolumeOfElement().

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from MutableVertexMesh< 2, 2 >.

Definition at line 54 of file Cylindrical2dVertexMesh.hpp.

Member Data Documentation

double Cylindrical2dVertexMesh::mWidth [private]

The circumference of the cylinder.

Definition at line 51 of file Cylindrical2dVertexMesh.hpp.

Referenced by GetVectorFromAtoB(), GetWidth(), serialize(), and SetNode().

The documentation for this class was generated from the following files:

cell_based/src/mesh/Cylindrical2dVertexMesh.hpp
cell_based/src/mesh/Cylindrical2dVertexMesh.cpp
