RegularStimulus Class Reference

#include <RegularStimulus.hpp>

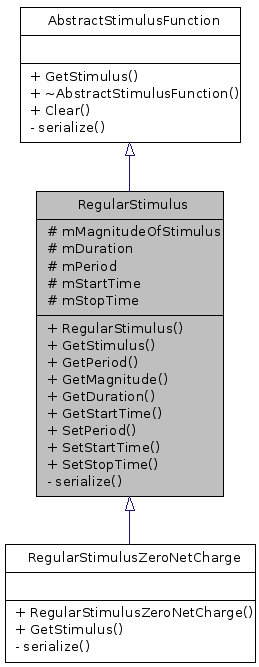

Inheritance diagram for RegularStimulus:

[legend]

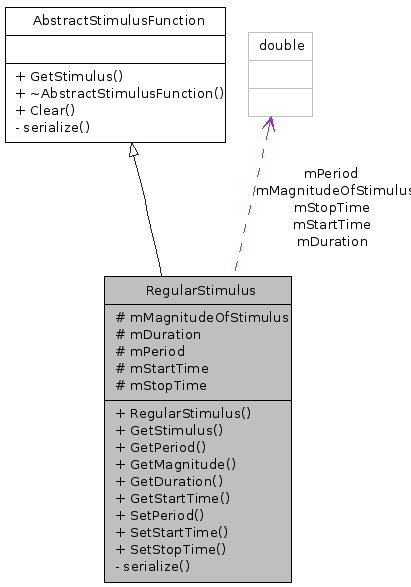

Collaboration diagram for RegularStimulus:

[legend]

List of all members.

Public Member Functions
	RegularStimulus (double magnitudeOfStimulus, double duration, double period, double startTime, double stopTime=DBL_MAX)
double	GetStimulus (double time)
double	GetPeriod ()
double	GetMagnitude ()
double	GetDuration ()
double	GetStartTime ()
void	SetPeriod (double period)
void	SetStartTime (double startTime)
void	SetStopTime (double stopTime)
Protected Attributes
double	mMagnitudeOfStimulus
double	mDuration
double	mPeriod
double	mStartTime
double	mStopTime
Private Member Functions
template<class Archive>
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

---

Detailed Description

Provides a periodic square-wave stimulus.

Definition at line 41 of file RegularStimulus.hpp.

---

Constructor & Destructor Documentation

RegularStimulus::RegularStimulus	(	double	magnitudeOfStimulus,
		double	duration,
		double	period,
		double	startTime,
		double	stopTime = DBL_MAX
	)

Create a new stimulus.

Parameters:

	magnitudeOfStimulus	The size of the stimulus
	duration	How long the square wave is applied for
	period	The time between square waves being applied
	startTime	The time at which the first wave is applied
	stopTime	The time the stimulus is removed (defaults to DBL_MAX if omitted)

Definition at line 36 of file RegularStimulus.cpp.

References mDuration, mMagnitudeOfStimulus, mPeriod, mStartTime, and mStopTime.

---

Member Function Documentation

template<class Archive>

void RegularStimulus::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Archive the simple stimulus, never used directly - boost uses this.

Parameters:

	archive
	version

Reimplemented from AbstractStimulusFunction.

Reimplemented in RegularStimulusZeroNetCharge.

Definition at line 53 of file RegularStimulus.hpp.

References mDuration, mMagnitudeOfStimulus, mPeriod, mStartTime, and mStopTime.

double RegularStimulus::GetStimulus

(

double

time

)

[virtual]

Get the magnitude of stimulus at time 'time'

Parameters:

time

The current time

Returns:

Magnitude of stimulus

Implements AbstractStimulusFunction.

Reimplemented in RegularStimulusZeroNetCharge.

Definition at line 51 of file RegularStimulus.cpp.

References mDuration, mMagnitudeOfStimulus, mPeriod, mStartTime, and mStopTime.

double RegularStimulus::GetPeriod

(

)

Returns:

the pacing cycle length or period of the stimulus.

Definition at line 76 of file RegularStimulus.cpp.

References mPeriod.

double RegularStimulus::GetMagnitude

(

)

Returns:

the height of the stimulus square wave (magnitude of current).

Definition at line 81 of file RegularStimulus.cpp.

References mMagnitudeOfStimulus.

double RegularStimulus::GetDuration

(

)

Returns:

the duration of the stimulus square wave.

Definition at line 86 of file RegularStimulus.cpp.

References mDuration.

double RegularStimulus::GetStartTime

(

)

Returns:

the start time of the stimulus square wave.

Definition at line 91 of file RegularStimulus.cpp.

References mStartTime.

void RegularStimulus::SetPeriod

(

double

period

)

set the pacing cycle length ('period') of the stimulus.

Parameters:

period

The stimulus pacing cycle length to use.

Definition at line 96 of file RegularStimulus.cpp.

References mPeriod.

void RegularStimulus::SetStartTime

(

double

startTime

)

Set the stimulus to start at a particular time.

Parameters:

startTime

the time the stimulus should begin.

Definition at line 101 of file RegularStimulus.cpp.

References mStartTime.

void RegularStimulus::SetStopTime

(

double

stopTime

)

Set the stop time for this stimulus. It will never be applied after this time.

Parameters:

stopTime

Definition at line 106 of file RegularStimulus.cpp.

References mStopTime.

---

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractStimulusFunction.

Reimplemented in RegularStimulusZeroNetCharge.

Definition at line 45 of file RegularStimulus.hpp.

---

Member Data Documentation

double RegularStimulus::mMagnitudeOfStimulus [protected]

The 'height' of the square wave applied

Definition at line 67 of file RegularStimulus.hpp.

Referenced by GetMagnitude(), RegularStimulusZeroNetCharge::GetStimulus(), GetStimulus(), RegularStimulus(), and serialize().

double RegularStimulus::mDuration [protected]

The length of the square wave

Definition at line 69 of file RegularStimulus.hpp.

Referenced by GetDuration(), RegularStimulusZeroNetCharge::GetStimulus(), GetStimulus(), RegularStimulus(), and serialize().

double RegularStimulus::mPeriod [protected]

The time between applications of the wave

Definition at line 71 of file RegularStimulus.hpp.

Referenced by GetPeriod(), RegularStimulusZeroNetCharge::GetStimulus(), GetStimulus(), RegularStimulus(), serialize(), and SetPeriod().

double RegularStimulus::mStartTime [protected]

The time at which the first wave is applied

Definition at line 73 of file RegularStimulus.hpp.

Referenced by GetStartTime(), RegularStimulusZeroNetCharge::GetStimulus(), GetStimulus(), RegularStimulus(), serialize(), and SetStartTime().

double RegularStimulus::mStopTime [protected]

The time at which all stimuli are removed (even if halfway through a wave)

Definition at line 75 of file RegularStimulus.hpp.

Referenced by RegularStimulusZeroNetCharge::GetStimulus(), GetStimulus(), RegularStimulus(), serialize(), and SetStopTime().

---

The documentation for this class was generated from the following files:

• heart/src/stimulus/RegularStimulus.hpp
• heart/src/stimulus/RegularStimulus.cpp
