SimpleStimulus Class Reference

#include <SimpleStimulus.hpp>

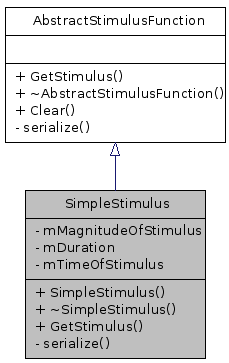

Inheritance diagram for SimpleStimulus:

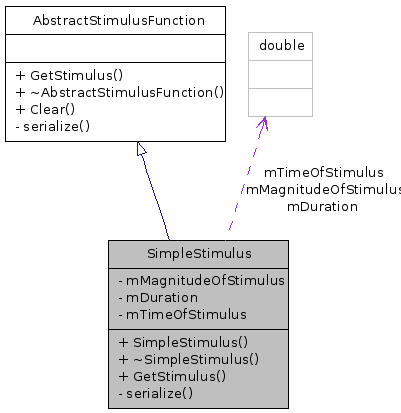

Collaboration diagram for SimpleStimulus:

List of all members.

Public Member Functions

SimpleStimulus (double magnitudeOfStimulus, double duration, double timeOfStimulus=0.0)

virtual ~SimpleStimulus ()

double GetStimulus (double time)

Private Member Functions

template<class Archive>

void serialize (Archive &archive, const unsigned int version)

Private Attributes

double mMagnitudeOfStimulus

double mDuration

double mTimeOfStimulus

Friends

class boost::serialization::access

Detailed Description

Provides an simple stimulus of magnitude 'magnitudeOfStimulus' from time 'timeOfStimulus' for duration 'duration'.

Definition at line 42 of file SimpleStimulus.hpp.

Constructor & Destructor Documentation

SimpleStimulus::SimpleStimulus	(	double	magnitudeOfStimulus,
		double	duration,
		double	timeOfStimulus = `0.0`
	)

Constructor.

Parameters:

	magnitudeOfStimulus	The stimulus magnitude, with units for single-cell problems - microA/cm^2 for (3d) tissue simulations - microA/cm^3
	duration	Duration of initial stimulus milliseconds
	timeOfStimulus	The time at which the stimulus starts (defaults to 0.0) milliseconds

Constructor

Definition at line 37 of file SimpleStimulus.cpp.

References mDuration, mMagnitudeOfStimulus, and mTimeOfStimulus.

SimpleStimulus::~SimpleStimulus ( ) [virtual]

Destructor.

Destructor

Definition at line 49 of file SimpleStimulus.cpp.

Member Function Documentation

template<class Archive>

void SimpleStimulus::serialize	(	Archive &	archive,
		const unsigned int	version
	)			`[inline, private]`

Archive the simple stimulus, never used directly - boost uses this.

Parameters:

	archive
	version

Reimplemented from AbstractStimulusFunction.

Definition at line 53 of file SimpleStimulus.hpp.

References mDuration, mMagnitudeOfStimulus, and mTimeOfStimulus.

double SimpleStimulus::GetStimulus ( double time ) [virtual]

Returns the stimulus at a given time.

Parameters:

time

time at which to return the stimulus

Get the magnitude of stimulus at time 'time'

Returns:: Magnitude of stimulus at time 'time'

Implements AbstractStimulusFunction.

Definition at line 59 of file SimpleStimulus.cpp.

References mDuration, mMagnitudeOfStimulus, and mTimeOfStimulus.

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractStimulusFunction.

Definition at line 45 of file SimpleStimulus.hpp.

Member Data Documentation

double SimpleStimulus::mMagnitudeOfStimulus [private]

The stimulus magnitude - units are: for single-cell problems - microA/cm^2 for (3d) tissue simulations - microA/cm^3

Definition at line 67 of file SimpleStimulus.hpp.

Referenced by GetStimulus(), serialize(), and SimpleStimulus().

double SimpleStimulus::mDuration [private]

Duration of initial stimulus, typically in milliseconds

Definition at line 69 of file SimpleStimulus.hpp.

Referenced by GetStimulus(), serialize(), and SimpleStimulus().

double SimpleStimulus::mTimeOfStimulus [private]

The time at which the stimulus starts, typically in milliseconds

Definition at line 71 of file SimpleStimulus.hpp.

Referenced by GetStimulus(), serialize(), and SimpleStimulus().

The documentation for this class was generated from the following files:

heart/src/stimulus/SimpleStimulus.hpp
heart/src/stimulus/SimpleStimulus.cpp
