AbstractAlgebraicContractionModel Class Reference

#include <AbstractAlgebraicContractionModel.hpp>

Inherits AbstractContractionModel.

Inherited by ConstantActiveTension, FakeBathContractionModel, and NonPhysiologicalContractionModel.

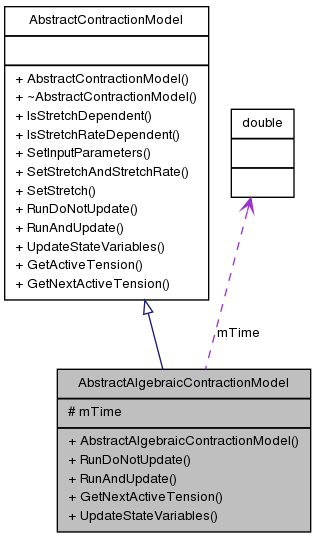

Collaboration diagram for AbstractAlgebraicContractionModel:

[legend]

List of all members.

Public Member Functions
	AbstractAlgebraicContractionModel ()
void	RunDoNotUpdate (double startTime, double endTime, double timestep)
void	RunAndUpdate (double startTime, double endTime, double timestep)
double	GetNextActiveTension ()
void	UpdateStateVariables ()
Protected Attributes
double	mTime

---

Detailed Description

Contraction models that give the active tension as an algebraic function of [Ca] or voltage, stretch, stretch rate and time; with no ODEs to integrate.

Definition at line 48 of file AbstractAlgebraicContractionModel.hpp.

---

Constructor & Destructor Documentation

AbstractAlgebraicContractionModel::AbstractAlgebraicContractionModel

(

)

[inline]

Constructor does nothing

Definition at line 49 of file AbstractAlgebraicContractionModel.hpp.

References AbstractContractionModel::AbstractContractionModel(), and mTime.

---

Member Function Documentation

double AbstractAlgebraicContractionModel::GetNextActiveTension

(

)

[inline, virtual]

Returns:

same as GetActiveTension() for algebraic models (uses which stretch and and stretch rate has been passed in).

Implements AbstractContractionModel.

Definition at line 81 of file AbstractAlgebraicContractionModel.hpp.

void AbstractAlgebraicContractionModel::RunAndUpdate	(	double	startTime,
		double	endTime,
		double	timestep
	)			[inline, virtual]

No ODE to run, so this does nothing except save the time (using the time at the next timestep)

Parameters:

	startTime	start time
	endTime	end time
	timestep	timestep for integrating ODEs if there were any

Implements AbstractContractionModel.

Definition at line 72 of file AbstractAlgebraicContractionModel.hpp.

void AbstractAlgebraicContractionModel::RunDoNotUpdate	(	double	startTime,
		double	endTime,
		double	timestep
	)			[inline, virtual]

No ODE to run, so this does nothing except save the time (using the time at the next timestep)

Parameters:

	startTime	start time
	endTime	end time
	timestep	timestep for integrating ODEs if there were any

Implements AbstractContractionModel.

Definition at line 61 of file AbstractAlgebraicContractionModel.hpp.

References mTime.

void AbstractAlgebraicContractionModel::UpdateStateVariables

(

)

[inline, virtual]

No ODE so does nothing.

Implements AbstractContractionModel.

Definition at line 87 of file AbstractAlgebraicContractionModel.hpp.

---

Member Data Documentation

double AbstractAlgebraicContractionModel::mTime [protected]

The time at the next timestep. Set in RunDoNotUpdate()

Definition at line 45 of file AbstractAlgebraicContractionModel.hpp.

Referenced by AbstractAlgebraicContractionModel(), NonPhysiologicalContractionModel::GetActiveTension(), and RunDoNotUpdate().

---

The documentation for this class was generated from the following file:

• heart/src/odes/contractionmodels/AbstractAlgebraicContractionModel.hpp
