AbstractBackwardEulerCardiacCell< 0u > Class Template Reference

#include <AbstractBackwardEulerCardiacCell.hpp>

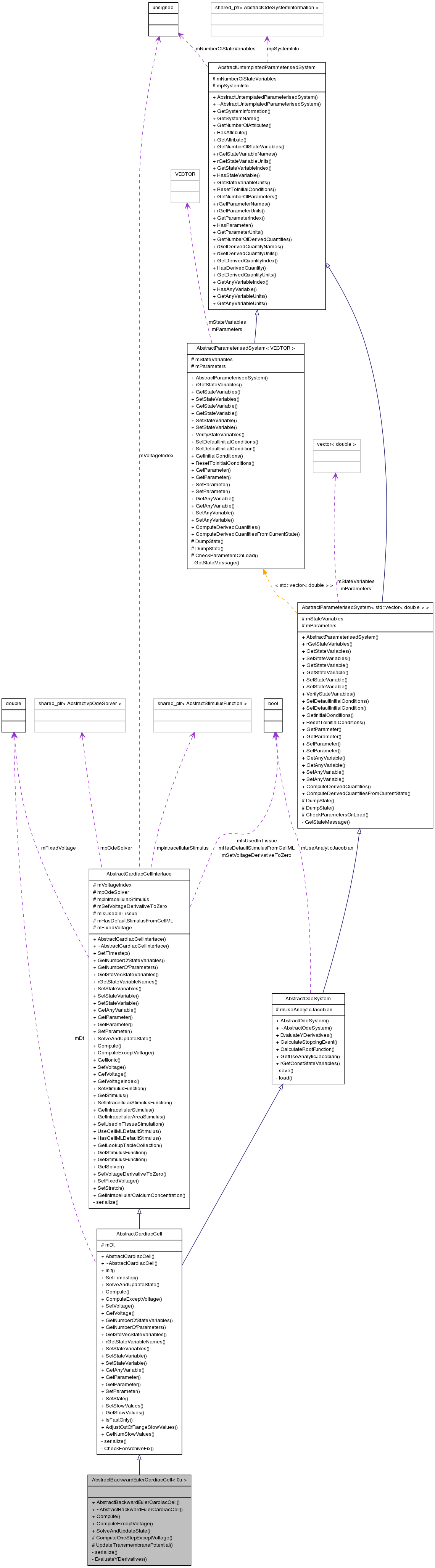

Collaboration diagram for AbstractBackwardEulerCardiacCell< 0u >:

Public Member Functions
	AbstractBackwardEulerCardiacCell (unsigned numberOfStateVariables, unsigned voltageIndex, boost::shared_ptr< AbstractStimulusFunction > pIntracellularStimulus)
virtual	~AbstractBackwardEulerCardiacCell ()
OdeSolution	Compute (double tStart, double tEnd, double tSamp=0.0)
void	ComputeExceptVoltage (double tStart, double tEnd)
void	SolveAndUpdateState (double tStart, double tEnd)
Protected Member Functions
virtual void	ComputeOneStepExceptVoltage (double tStart)=0
virtual void	UpdateTransmembranePotential (double time)=0
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
void	EvaluateYDerivatives (double time, const std::vector< double > &rY, std::vector< double > &rDY)
Friends
class	boost::serialization::access

Detailed Description

template<>
class AbstractBackwardEulerCardiacCell< 0u >

Specialization for the case where there are no non-linear ODEs in the model.

Definition at line 332 of file AbstractBackwardEulerCardiacCell.hpp.

Constructor & Destructor Documentation

AbstractBackwardEulerCardiacCell< 0u >::AbstractBackwardEulerCardiacCell	(	unsigned	numberOfStateVariables,
		unsigned	voltageIndex,
		boost::shared_ptr< AbstractStimulusFunction >	pIntracellularStimulus
	)			`[inline]`

Standard constructor for a cell.

Parameters:

	numberOfStateVariables	the size of the ODE system
	voltageIndex	the index of the variable representing the transmembrane potential within the state variable vector
	pIntracellularStimulus	the intracellular stimulus function

Definition at line 359 of file AbstractBackwardEulerCardiacCell.hpp.

virtual AbstractBackwardEulerCardiacCell< 0u >::~AbstractBackwardEulerCardiacCell ( ) [inline, virtual]

Virtual destructor

Definition at line 369 of file AbstractBackwardEulerCardiacCell.hpp.

Member Function Documentation

OdeSolution AbstractBackwardEulerCardiacCell< 0u >::Compute	(	double	tStart,
		double	tEnd,
		double	tSamp = `0.0`
	)			`[inline, virtual]`

Simulates this cell's behaviour between the time interval [tStart, tEnd], with timestep mDt. Uses a forward Euler step to update the transmembrane potential at each timestep.

The length of the time interval must be a multiple of the timestep.

Parameters:

	tStart	beginning of the time interval to simulate
	tEnd	end of the time interval to simulate
	tSamp	sampling interval for returned results (defaults to mDt)

Returns:: the values of each state variable, at intervals of tSamp.

Reimplemented from AbstractCardiacCell.

Definition at line 384 of file AbstractBackwardEulerCardiacCell.hpp.

References AbstractBackwardEulerCardiacCell< SIZE >::ComputeOneStepExceptVoltage(), AbstractCardiacCell::mDt, AbstractUntemplatedParameterisedSystem::mpSystemInfo, OdeSolution::rGetSolutions(), AbstractParameterisedSystem< std::vector< double > >::rGetStateVariables(), OdeSolution::rGetTimes(), OdeSolution::SetNumberOfTimeSteps(), OdeSolution::SetOdeSystemInformation(), AbstractBackwardEulerCardiacCell< SIZE >::UpdateTransmembranePotential(), and AbstractParameterisedSystem< std::vector< double > >::VerifyStateVariables().

void AbstractBackwardEulerCardiacCell< 0u >::ComputeExceptVoltage	(	double	tStart,
		double	tEnd
	)			`[inline, virtual]`

Simulates this cell's behaviour between the time interval [tStart, tEnd], with timestep mDt. The transmembrane potential is kept fixed throughout.

The length of the time interval must be a multiple of the timestep.

Parameters:

	tStart	beginning of the time interval to simulate
	tEnd	end of the time interval to simulate

Reimplemented from AbstractCardiacCell.

Definition at line 444 of file AbstractBackwardEulerCardiacCell.hpp.

References AbstractBackwardEulerCardiacCell< SIZE >::ComputeOneStepExceptVoltage(), AbstractCardiacCell::mDt, and AbstractParameterisedSystem< std::vector< double > >::VerifyStateVariables().

virtual void AbstractBackwardEulerCardiacCell< 0u >::ComputeOneStepExceptVoltage ( double tStart ) [protected, pure virtual]

Compute the values of all state variables, except the voltage, using backward Euler, for one timestep from tStart.

Note:: This method must be provided by subclasses.

Parameters:

tStart

start of this timestep

void AbstractBackwardEulerCardiacCell< 0u >::EvaluateYDerivatives	(	double	time,
		const std::vector< double > &	rY,
		std::vector< double > &	rDY
	)			`[inline, private, virtual]`

This function should never be called - the cell class incorporates its own solver.

Parameters:

	time
	rY
	rDY

Implements AbstractOdeSystem.

Definition at line 506 of file AbstractBackwardEulerCardiacCell.hpp.

References NEVER_REACHED.

template<class Archive >

void AbstractBackwardEulerCardiacCell< 0u >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			`[inline, private]`

Archive the member variables.

Parameters:

	archive
	version

Reimplemented from AbstractCardiacCell.

Definition at line 344 of file AbstractBackwardEulerCardiacCell.hpp.

void AbstractBackwardEulerCardiacCell< 0u >::SolveAndUpdateState	(	double	tStart,
		double	tEnd
	)			`[inline, virtual]`

Simulate this cell's behaviour between the time interval [tStart, tEnd], with timestemp mDt, updating the internal state variable values.

Parameters:

	tStart	beginning of the time interval to simulate
	tEnd	end of the time interval to simulate

Reimplemented from AbstractCardiacCell.

Definition at line 476 of file AbstractBackwardEulerCardiacCell.hpp.

References TimeStepper::AdvanceOneTimeStep(), AbstractBackwardEulerCardiacCell< SIZE >::ComputeOneStepExceptVoltage(), TimeStepper::GetTime(), TimeStepper::IsTimeAtEnd(), AbstractCardiacCell::mDt, AbstractBackwardEulerCardiacCell< SIZE >::UpdateTransmembranePotential(), and AbstractParameterisedSystem< std::vector< double > >::VerifyStateVariables().

virtual void AbstractBackwardEulerCardiacCell< 0u >::UpdateTransmembranePotential ( double time ) [protected, pure virtual]

Perform a forward Euler step to update the transmembrane potential.

Note:: This method must be provided by subclasses.

Parameters:

time

start of this timestep

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCardiacCell.

Definition at line 336 of file AbstractBackwardEulerCardiacCell.hpp.

The documentation for this class was generated from the following file:

heart/src/odes/AbstractBackwardEulerCardiacCell.hpp
