AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM > Class Template Reference

#include <AbstractBoundaryConditionsContainer.hpp>

Inherited by BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >, BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, 1 >, BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, 2 >, and BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, 3 >.

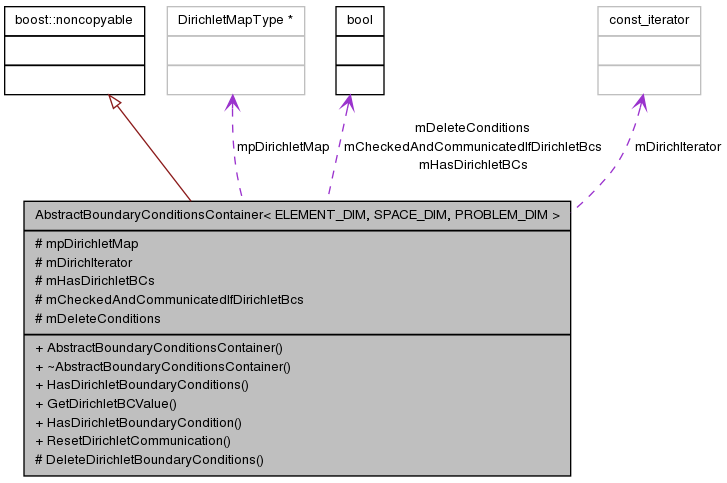

Collaboration diagram for AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >:

[legend]

List of all members.

Public Member Functions
	AbstractBoundaryConditionsContainer (bool deleteConditions=true)
	~AbstractBoundaryConditionsContainer ()
bool	HasDirichletBoundaryConditions ()
double	GetDirichletBCValue (const Node< SPACE_DIM > *pBoundaryNode, unsigned indexOfUnknown=0)
bool	HasDirichletBoundaryCondition (const Node< SPACE_DIM > *pNode, unsigned indexOfUnknown=0)
void	ResetDirichletCommunication ()
Protected Types
typedef std::map< const Node < SPACE_DIM > , const AbstractBoundaryCondition < SPACE_DIM > , LessThanNode < SPACE_DIM > >	DirichletMapType
typedef std::map< const Node < SPACE_DIM > , const AbstractBoundaryCondition < SPACE_DIM > , LessThanNode < SPACE_DIM > >::const_iterator	DirichletIteratorType
Protected Member Functions
void	DeleteDirichletBoundaryConditions (std::set< const AbstractBoundaryCondition< SPACE_DIM > * > alreadyDeletedConditions=std::set< const AbstractBoundaryCondition< SPACE_DIM > * >())
Protected Attributes
DirichletMapType *	mpDirichletMap [PROBLEM_DIM]
DirichletIteratorType	mDirichIterator
bool	mHasDirichletBCs
bool	mCheckedAndCommunicatedIfDirichletBcs
bool	mDeleteConditions

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>
class AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >

Abstract boundary conditions container.

Definition at line 72 of file AbstractBoundaryConditionsContainer.hpp.

Member Typedef Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

typedef std::map< const Node<SPACE_DIM> *, const AbstractBoundaryCondition<SPACE_DIM>*, LessThanNode<SPACE_DIM> >::const_iterator AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DirichletIteratorType [protected]

To save typing

Definition at line 83 of file AbstractBoundaryConditionsContainer.hpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

typedef std::map< const Node<SPACE_DIM> *, const AbstractBoundaryCondition<SPACE_DIM>*, LessThanNode<SPACE_DIM> > AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DirichletMapType [protected]

To save typing

Definition at line 78 of file AbstractBoundaryConditionsContainer.hpp.

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::AbstractBoundaryConditionsContainer ( bool deleteConditions = true ) [inline]

Constructor allocates memory for the Dirichlet boundary conditions lists.

Parameters:

deleteConditions

whether to delete BCs in destructor (defaults to true)

Definition at line 43 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::~AbstractBoundaryConditionsContainer ( ) [inline]

Destructor.

Definition at line 55 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DeleteDirichletBoundaryConditions().

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

void AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DeleteDirichletBoundaryConditions ( std::set< const AbstractBoundaryCondition< SPACE_DIM > * > alreadyDeletedConditions = std::set<const AbstractBoundaryCondition<SPACE_DIM>*>() ) [inline, protected]

Delete the list of Dirichlet boundary conditions.

Note:: This should stay as a protected method to avoid it being called with default arguments and causing seg faults (requires careful bookkeeping when calling this method).

Parameters:

alreadyDeletedConditions

This is a set of BCs that have already been deleted that we should avoid trying to delete inside this method. (defaults to empty = delete everything)

Definition at line 81 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDeleteConditions, AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDirichIterator, AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap, and AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ResetDirichletCommunication().

Referenced by AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::~AbstractBoundaryConditionsContainer(), and BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::~BoundaryConditionsContainer().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

double AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::GetDirichletBCValue	(	const Node< SPACE_DIM > *	pBoundaryNode,
		unsigned	indexOfUnknown = `0`
	)			`[inline]`

Returns:: value of Dirichlet boundary condition at specified node.

This is unlikely to be needed by the user, the methods ApplyDirichletToLinearProblem or ApplyDirichletToNonlinearProblem can be called instead to apply all Dirichlet boundary conditions at the same time.

Parameters:

	pBoundaryNode	pointer to a boundary node
	indexOfUnknown	index of the unknown for which to obtain the value of the boundary condition (defaults to 0)

Definition at line 111 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References Node< SPACE_DIM >::GetPoint(), AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDirichIterator, and AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

bool AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::HasDirichletBoundaryCondition	(	const Node< SPACE_DIM > *	pNode,
		unsigned	indexOfUnknown = `0`
	)			`[inline]`

Returns:: true if there is a Dirichlet boundary condition defined on the given node.

Parameters:

	pNode	pointer to a node
	indexOfUnknown	index of the unknown for which to obtain the value of the boundary condition (defaults to 0)

Definition at line 123 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDirichIterator, and AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap.

Referenced by BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::Validate().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

bool AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::HasDirichletBoundaryConditions ( ) [inline]

Returns:: whether any Dirichlet conditions are defined (for ANY of the unknowns, on ANY of the processes). Must be called collectively. The first time this is called, the result is communicated to all processes and then cached locally (the bool mHasDirichletBCs). If this needs recalculating mCheckedAndCommunicatedIfDirichletBcs must be reset to zero.

Definition at line 61 of file AbstractBoundaryConditionsContainerImplementation.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mCheckedAndCommunicatedIfDirichletBcs, AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mHasDirichletBCs, AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap, and PetscTools::ReplicateBool().

Referenced by BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ApplyDirichletToLinearProblem(), AbstractExtendedBidomainSolver< ELEMENT_DIM, SPACE_DIM >::CheckCompatibilityCondition(), and AbstractExtendedBidomainSolver< ELEMENT_DIM, SPACE_DIM >::FinaliseLinearSystem().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

void AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ResetDirichletCommunication ( ) [inline]

When Dirichlet boundary conditions are likely to be added on one or more processes then we should call this method collectively in order to ensure that all processes do a collective communication on the next call to HasDirichletBoundaryConditions()

Definition at line 153 of file AbstractBoundaryConditionsContainer.hpp.

References AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mCheckedAndCommunicatedIfDirichletBcs.

Referenced by AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DeleteDirichletBoundaryConditions(), AbstractExtendedBidomainSolver< ELEMENT_DIM, SPACE_DIM >::SetFixedExtracellularPotentialNodes(), and AbstractBidomainSolver< ELEMENT_DIM, SPACE_DIM >::SetFixedExtracellularPotentialNodes().

Member Data Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

bool AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mCheckedAndCommunicatedIfDirichletBcs [protected]

Returns:: true if we calculated mHasDirichletBCs.

Definition at line 90 of file AbstractBoundaryConditionsContainer.hpp.

Referenced by AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::HasDirichletBoundaryConditions(), BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::MergeFromArchive(), and AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ResetDirichletCommunication().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

bool AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDeleteConditions [protected]

Returns:: true if we need to delete BCs in destructor.

Definition at line 93 of file AbstractBoundaryConditionsContainer.hpp.

Referenced by AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DeleteDirichletBoundaryConditions(), and BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::~BoundaryConditionsContainer().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

DirichletIteratorType AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mDirichIterator [protected]

Internal iterator over Dirichlet boundary conditions

Definition at line 84 of file AbstractBoundaryConditionsContainer.hpp.

Referenced by BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ApplyDirichletToLinearProblem(), BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ApplyDirichletToNonlinearJacobian(), BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::ApplyDirichletToNonlinearResidual(), AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::DeleteDirichletBoundaryConditions(), AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::GetDirichletBCValue(), and AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::HasDirichletBoundaryCondition().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

bool AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mHasDirichletBCs [protected]

Returns:: true if there are any Dirichlet BCs anywhere on the mesh

Definition at line 87 of file AbstractBoundaryConditionsContainer.hpp.

Referenced by AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::HasDirichletBoundaryConditions(), and BoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::MergeFromArchive().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM, unsigned PROBLEM_DIM>

DirichletMapType* AbstractBoundaryConditionsContainer< ELEMENT_DIM, SPACE_DIM, PROBLEM_DIM >::mpDirichletMap[PROBLEM_DIM] [protected]

List (map) of Dirichlet boundary conditions

Definition at line 79 of file AbstractBoundaryConditionsContainer.hpp.

The documentation for this class was generated from the following files:

pde/src/common/AbstractBoundaryConditionsContainer.hpp
pde/src/common/AbstractBoundaryConditionsContainerImplementation.hpp
