AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <AbstractConductivityModifier.hpp>

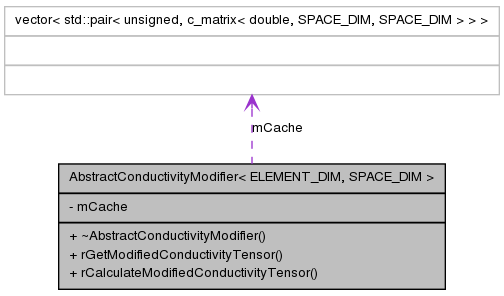

Collaboration diagram for AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM >:

Public Member Functions
virtual	~AbstractConductivityModifier ()
c_matrix< double, SPACE_DIM, SPACE_DIM > &	rGetModifiedConductivityTensor (unsigned elementIndex, const c_matrix< double, SPACE_DIM, SPACE_DIM > &rOriginalConductivity, unsigned domainIndex)
virtual c_matrix< double, SPACE_DIM, SPACE_DIM > &	rCalculateModifiedConductivityTensor (unsigned elementIndex, const c_matrix< double, SPACE_DIM, SPACE_DIM > &rOriginalConductivity, unsigned domainIndex)=0
Private Attributes
std::vector< std::pair < unsigned, c_matrix< double, SPACE_DIM, SPACE_DIM > > >	mCache

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM >

Abstract class which just defines an interface and caching method. The pure method rCalculateModifiedConductivityTensor() should take in a conductivity and return a modified conductivity (for example, dependent on current deformation, etc.)

Definition at line 47 of file AbstractConductivityModifier.hpp.

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

virtual AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM >::~AbstractConductivityModifier ( ) [inline, virtual]

Destructor

Definition at line 55 of file AbstractConductivityModifier.hpp.

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

virtual c_matrix<double,SPACE_DIM,SPACE_DIM>& AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM >::rCalculateModifiedConductivityTensor	(	unsigned	elementIndex,
		const c_matrix< double, SPACE_DIM, SPACE_DIM > &	rOriginalConductivity,
		unsigned	domainIndex
	)			`[pure virtual]`

Pure method that alters the given conductivity tensor on an element-wise basis for a particular domain.

Parameters:

	elementIndex	Global index of current element.
	rOriginalConductivity	Reference to the original (for example, undeformed) conductivity tensor.
	domainIndex	The index of the domain (0=intracellular, 1=extracellular, [2=second intracellular in extended bidomain]).

Returns:: Reference to a modified conductivity tensor, N.B. the fact this is a reference means the tensor object has to persist, and should therefore generally be a member variable of your subclass (it gets copied/cached appropriately by the calling code, so doesn't have to persist for subsequent calls!).

Referenced by AbstractConductivityModifier< DIM, DIM >::rGetModifiedConductivityTensor().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

c_matrix<double,SPACE_DIM,SPACE_DIM>& AbstractConductivityModifier< ELEMENT_DIM, SPACE_DIM >::rGetModifiedConductivityTensor	(	unsigned	elementIndex,
		const c_matrix< double, SPACE_DIM, SPACE_DIM > &	rOriginalConductivity,
		unsigned	domainIndex
	)			`[inline]`

Method that checks element index and the domain (intra/extra/other) and returns cached value if available.

Parameters:

	elementIndex	Index of current element
	rOriginalConductivity	Reference to the original (for example, undeformed) conductivity tensor
	domainIndex	Used to tailor modification to the domain. 0 = intracellular, 1 = extracellular, 2 = second intracellular (tridomain)
