BathCellFactory< DIM, CELLTYPE > Class Template Reference

#include <SimpleBathProblemSetup.hpp>

Inherits AbstractCardiacCellFactory< DIM >.

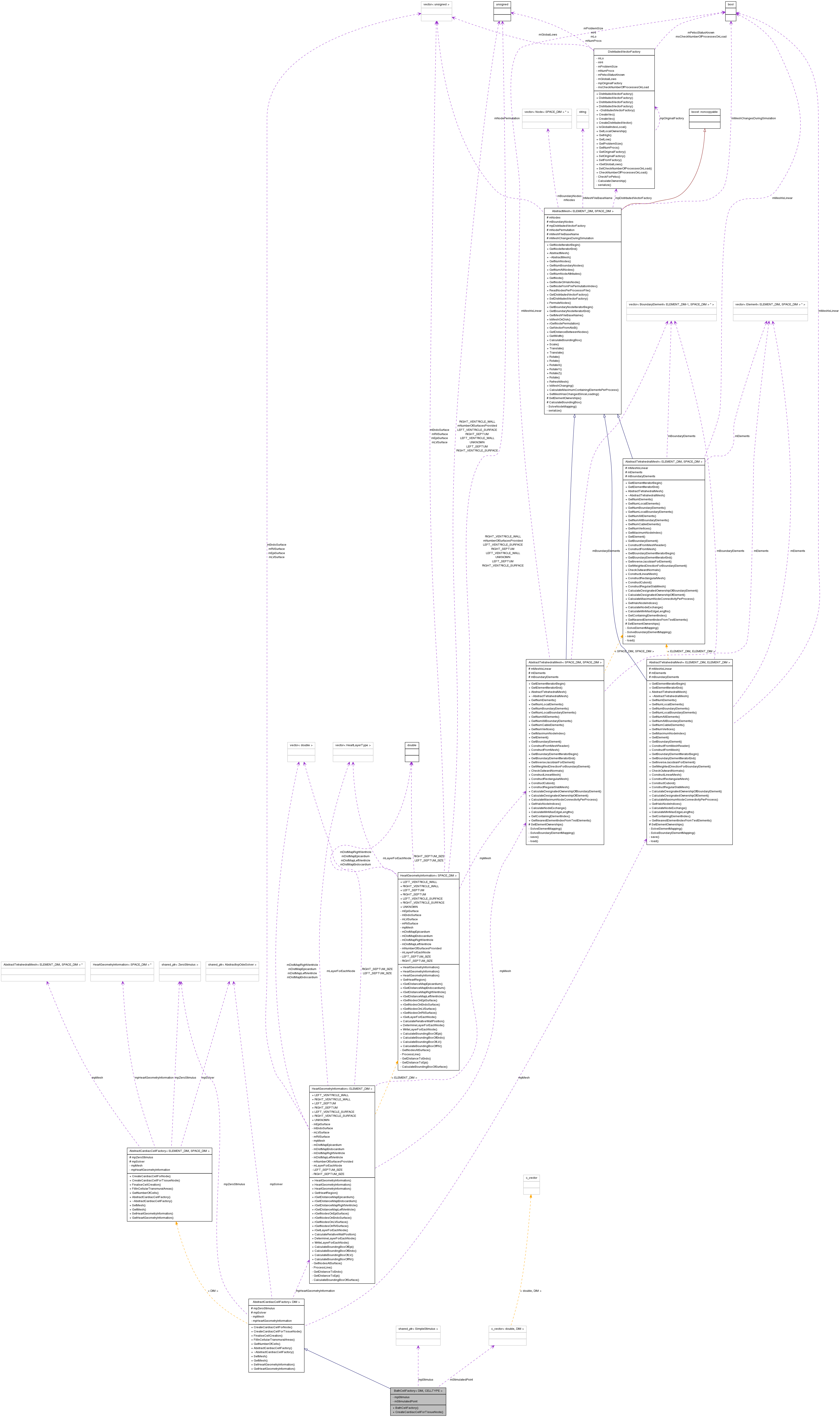

Collaboration diagram for BathCellFactory< DIM, CELLTYPE >:

[legend]

List of all members.

Public Member Functions
	BathCellFactory (double stimulusMagnitude, c_vector< double, DIM > stimulatedPoint)
AbstractCardiacCellInterface *	CreateCardiacCellForTissueNode (Node< DIM > *pNode)
Private Attributes
boost::shared_ptr< SimpleStimulus >	mpStimulus
c_vector< double, DIM >	mStimulatedPoint

---

Detailed Description

template<unsigned DIM, class CELLTYPE = CellLuoRudy1991FromCellML>
class BathCellFactory< DIM, CELLTYPE >

A simple cell factory for bath problems, applying a SimpleStimulus for 0.5ms at a single point.

Definition at line 54 of file SimpleBathProblemSetup.hpp.

---

Constructor & Destructor Documentation

template<unsigned DIM, class CELLTYPE = CellLuoRudy1991FromCellML>

BathCellFactory< DIM, CELLTYPE >::BathCellFactory	(	double	stimulusMagnitude,
		c_vector< double, DIM >	stimulatedPoint
	)			[inline]

Returns:

a newly created cell factory.

Parameters:

	stimulusMagnitude
	stimulatedPoint	spatial co-ordinates of where to stimulate. Must correspond to a node location.

Definition at line 69 of file SimpleBathProblemSetup.hpp.

---

Member Function Documentation

template<unsigned DIM, class CELLTYPE = CellLuoRudy1991FromCellML>

AbstractCardiacCellInterface* BathCellFactory< DIM, CELLTYPE >::CreateCardiacCellForTissueNode

(

Node< DIM > *

pNode

)

[inline]

Returns:

a newly created new cell.

Parameters:

pNode

pointer to Node object for cell.

Definition at line 80 of file SimpleBathProblemSetup.hpp.

References Node< SPACE_DIM >::GetPoint(), Node< SPACE_DIM >::GetRegion(), HeartRegionCode::IsRegionTissue(), AbstractCardiacCellFactory< DIM >::mpSolver, BathCellFactory< DIM, CELLTYPE >::mpStimulus, AbstractCardiacCellFactory< DIM >::mpZeroStimulus, and BathCellFactory< DIM, CELLTYPE >::mStimulatedPoint.

---

Member Data Documentation

template<unsigned DIM, class CELLTYPE = CellLuoRudy1991FromCellML>

boost::shared_ptr<SimpleStimulus> BathCellFactory< DIM, CELLTYPE >::mpStimulus [private]

The stimulus to apply

Definition at line 58 of file SimpleBathProblemSetup.hpp.

Referenced by BathCellFactory< DIM, CELLTYPE >::CreateCardiacCellForTissueNode().

template<unsigned DIM, class CELLTYPE = CellLuoRudy1991FromCellML>

c_vector<double,DIM> BathCellFactory< DIM, CELLTYPE >::mStimulatedPoint [private]

and where to apply it

Definition at line 60 of file SimpleBathProblemSetup.hpp.

Referenced by BathCellFactory< DIM, CELLTYPE >::CreateCardiacCellForTissueNode().

---

The documentation for this class was generated from the following file:

• heart/src/fortests/SimpleBathProblemSetup.hpp
