BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <BoundaryNodeWriter.hpp>

Inherits AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

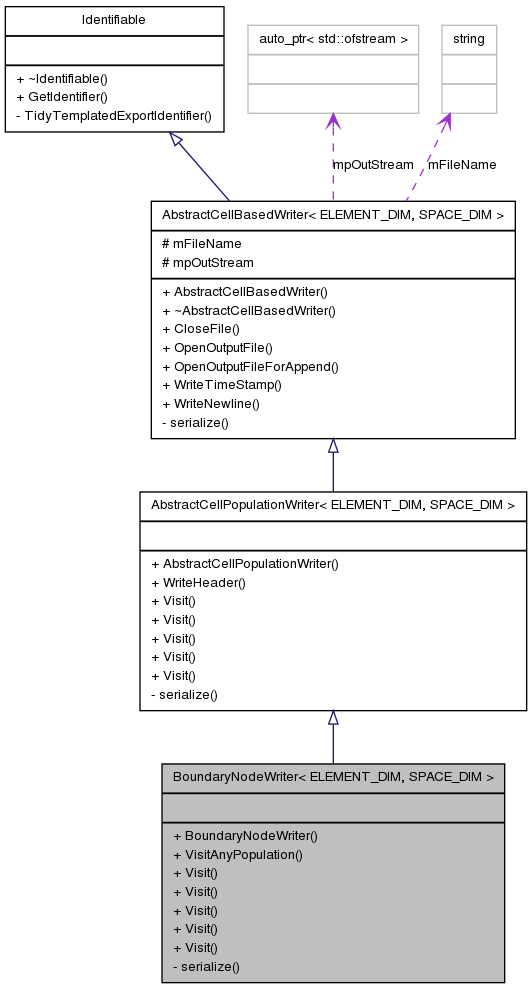

Collaboration diagram for BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >:

Public Member Functions
	BoundaryNodeWriter ()
void	VisitAnyPopulation (AbstractCellPopulation< SPACE_DIM, SPACE_DIM > *pCellPopulation)
virtual void	Visit (MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > *pCellPopulation)
virtual void	Visit (CaBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (NodeBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (PottsBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (VertexBasedCellPopulation< SPACE_DIM > *pCellPopulation)
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >

A class written using the visitor pattern for writing the boundary nodes of a population to file.

Definition at line 45 of file BoundaryNodeWriter.hpp.

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::BoundaryNodeWriter ( ) [inline]

Default constructor.

Definition at line 45 of file BoundaryNodeWriter.cpp.

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

template<class Archive >

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			`[inline, private]`

Serialize the object and its member variables.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 57 of file BoundaryNodeWriter.hpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::Visit ( VertexBasedCellPopulation< SPACE_DIM > * pCellPopulation ) [inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the VertexBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 97 of file BoundaryNodeWriter.cpp.

References BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::VisitAnyPopulation().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::Visit ( PottsBasedCellPopulation< SPACE_DIM > * pCellPopulation ) [inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the PottsBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 91 of file BoundaryNodeWriter.cpp.

References BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::VisitAnyPopulation().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::Visit ( NodeBasedCellPopulation< SPACE_DIM > * pCellPopulation ) [inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the NodeBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 85 of file BoundaryNodeWriter.cpp.

References BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::VisitAnyPopulation().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::Visit ( CaBasedCellPopulation< SPACE_DIM > * pCellPopulation ) [inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the CaBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 79 of file BoundaryNodeWriter.cpp.

References BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::VisitAnyPopulation().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::Visit ( MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > * pCellPopulation ) [inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the MeshBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 65 of file BoundaryNodeWriter.cpp.

References AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream, and MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::rGetMesh().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void BoundaryNodeWriter< ELEMENT_DIM, SPACE_DIM >::VisitAnyPopulation ( AbstractCellPopulation< SPACE_DIM, SPACE_DIM > * pCellPopulation ) [inline]
