CardiacElectroMechProbRegularGeom< DIM > Class Template Reference

#include <CardiacElectroMechProbRegularGeom.hpp>

Inherits CardiacElectroMechanicsProblem< DIM >.

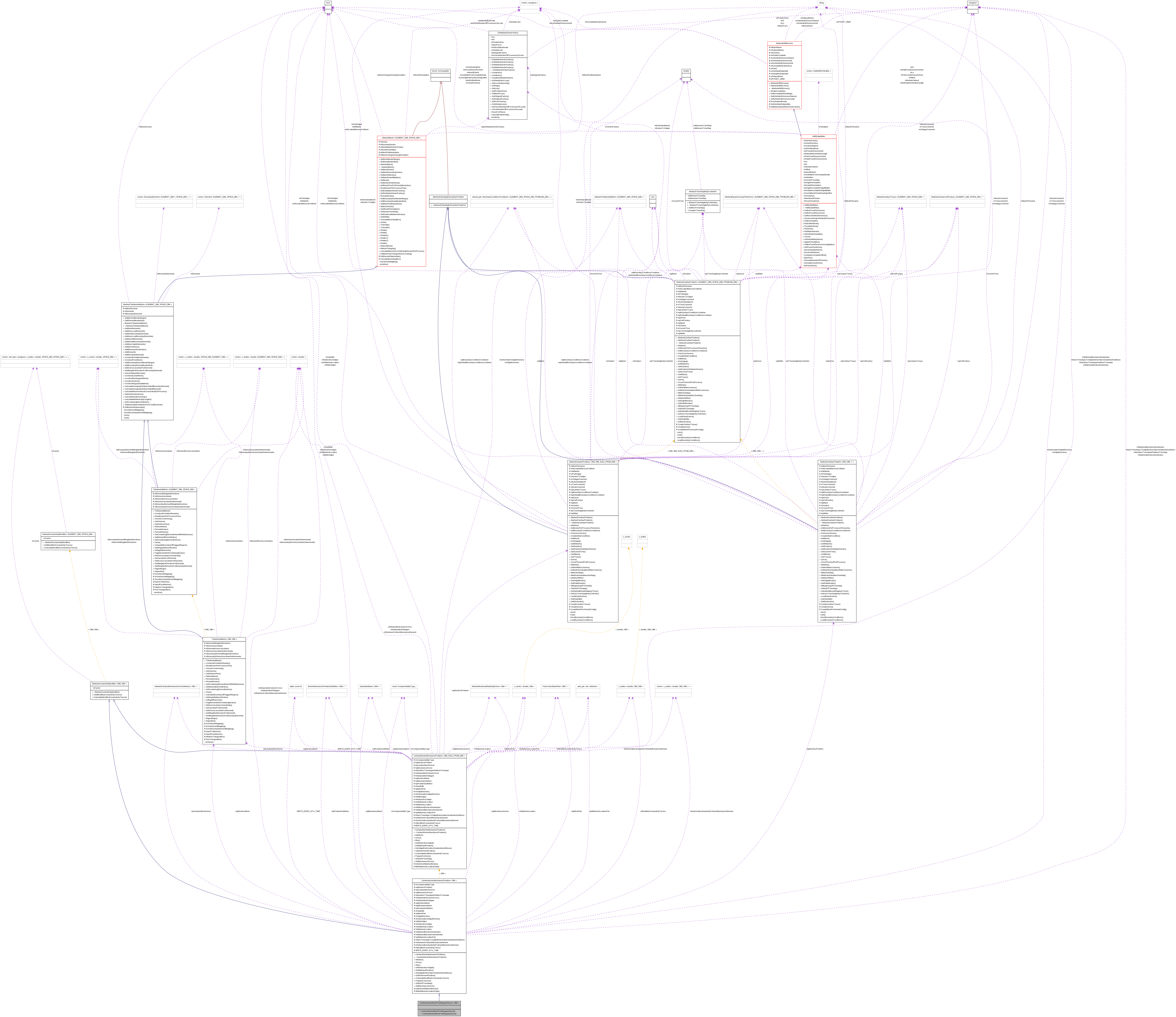

Collaboration diagram for CardiacElectroMechProbRegularGeom< DIM >:

[legend]

List of all members.

Public Member Functions
	CardiacElectroMechProbRegularGeom (CompressibilityType compressibilityType, double width, unsigned numMechanicsElementsEachDir, unsigned numElectricsElementsEachDir, AbstractCardiacCellFactory< DIM > *pCellFactory, ContractionModelName contractionModel, double mechanicsSolveTimestep, double contractionModelOdeTimeStep, std::string outputDirectory="")

---

Detailed Description

template<unsigned DIM>
class CardiacElectroMechProbRegularGeom< DIM >

Child class of CardiacElectroMechanicsProblem for setting up cardiac electromechanics problems on a square (currently just 2d). The user just has to specify the number of elements in each direction.

This class can only be used to set up highly-restricted problems (square geometry, fibres in X-direction, X=0 side fixed in space, no tractions, pressures or MEF) - use the more general class CardiacElectroMechanicsProblem if you want to do anything more complex.

Note: the X=0 surface is fixed in the deformation.

Definition at line 53 of file CardiacElectroMechProbRegularGeom.hpp.

---

Constructor & Destructor Documentation

template<unsigned DIM>

CardiacElectroMechProbRegularGeom< DIM >::CardiacElectroMechProbRegularGeom	(	CompressibilityType	compressibilityType,
		double	width,
		unsigned	numMechanicsElementsEachDir,
		unsigned	numElectricsElementsEachDir,
		AbstractCardiacCellFactory< DIM > *	pCellFactory,
		ContractionModelName	contractionModel,
		double	mechanicsSolveTimestep,
		double	contractionModelOdeTimeStep,
		std::string	outputDirectory = ""
	)			[inline]

Constructor.

Parameters:

	compressibilityType	Should be either INCOMPRESSIBLE or COMPRESSIBLE
	width	Width and height of the square
	numMechanicsElementsEachDir	Number of elements in each direction in the mechanics mesh
	numElectricsElementsEachDir	Number of elements in each direction in the electrics mesh
	pCellFactory	factory to use to create cells
	contractionModel	contraction model (see the enum "ContractionModel" for the options).
	mechanicsSolveTimestep	how often the mechanics is solved for (should be a multiple of electrics PDE timestep)
	contractionModelOdeTimeStep	Step size for contraction model (of active tension in cardiac cells) being used.
	outputDirectory	the output directory

Definition at line 70 of file CardiacElectroMechProbRegularGeom.hpp.

References AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::ConstructRegularSlabMesh(), AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), CardiacElectroMechanicsProblem< DIM >::mpElectricsMesh, CardiacElectroMechanicsProblem< DIM >::mpMechanicsMesh, and CardiacElectroMechanicsProblem< DIM >::mpProblemDefinition.

---

The documentation for this class was generated from the following file:

• heart/src/problem/CardiacElectroMechProbRegularGeom.hpp
