CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <CellPopulationAreaWriter.hpp>

Inherits AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

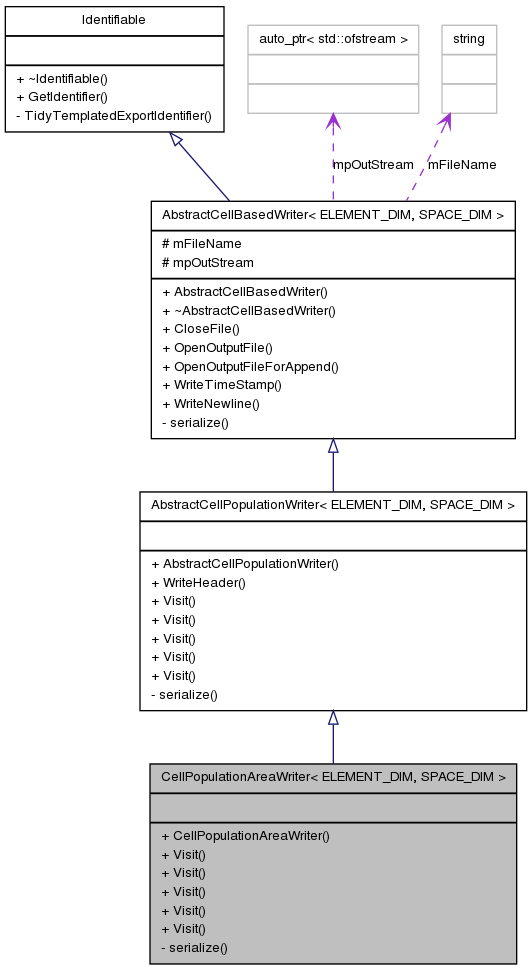

Collaboration diagram for CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >:

[legend]

List of all members.

Public Member Functions
	CellPopulationAreaWriter ()
virtual void	Visit (MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > *pCellPopulation)
virtual void	Visit (CaBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (NodeBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (PottsBasedCellPopulation< SPACE_DIM > *pCellPopulation)
virtual void	Visit (VertexBasedCellPopulation< SPACE_DIM > *pCellPopulation)
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

---

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >

A class written using the visitor pattern for writing cell population volume data to file. Used by MeshBasedCellPopulation.

Definition at line 48 of file CellPopulationAreaWriter.hpp.

---

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::CellPopulationAreaWriter

(

)

[inline]

Default constructor.

Definition at line 45 of file CellPopulationAreaWriter.cpp.

---

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

template<class Archive >

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Serialize the object and its member variables.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 60 of file CellPopulationAreaWriter.hpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::Visit

(

VertexBasedCellPopulation< SPACE_DIM > *

pCellPopulation

)

[inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the VertexBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 108 of file CellPopulationAreaWriter.cpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::Visit

(

PottsBasedCellPopulation< SPACE_DIM > *

pCellPopulation

)

[inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the PottsBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 103 of file CellPopulationAreaWriter.cpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::Visit

(

NodeBasedCellPopulation< SPACE_DIM > *

pCellPopulation

)

[inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the NodeBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 98 of file CellPopulationAreaWriter.cpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::Visit

(

CaBasedCellPopulation< SPACE_DIM > *

pCellPopulation

)

[inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the CaBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 93 of file CellPopulationAreaWriter.cpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellPopulationAreaWriter< ELEMENT_DIM, SPACE_DIM >::Visit

(

MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > *

pCellPopulation

)

[inline, virtual]

Visit the population and write the data.

Parameters:

pCellPopulation

a pointer to the MeshBasedCellPopulation to visit.

Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 51 of file CellPopulationAreaWriter.cpp.

References AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetCellUsingLocationIndex(), VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetDelaunayNodeIndexCorrespondingToVoronoiElementIndex(), VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetElementIteratorBegin(), VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetElementIteratorEnd(), VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetVolumeOfElement(), MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetVoronoiTessellation(), AbstractCentreBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::IsGhostNode(), AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream, and MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::rGetMesh().

---

Friends And Related Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 52 of file CellPopulationAreaWriter.hpp.

---

The documentation for this class was generated from the following files:

• cell_based/src/population/writers/population_writers/CellPopulationAreaWriter.hpp
• cell_based/src/population/writers/population_writers/CellPopulationAreaWriter.cpp
