CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM > Class Template Reference
#include <CellPopulationElementWriter.hpp>

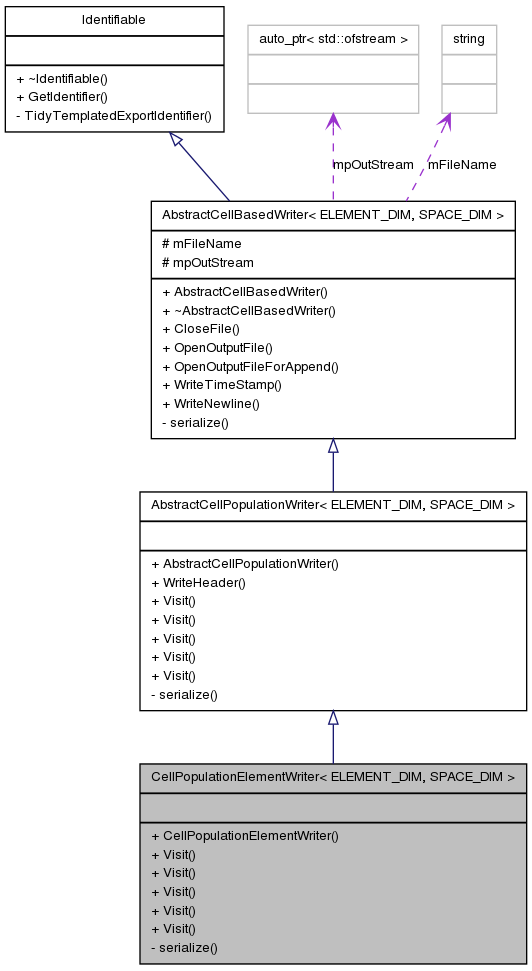

Inherits AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Public Member Functions | |
| CellPopulationElementWriter () | |
| virtual void | Visit (MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > *pCellPopulation) |
| virtual void | Visit (CaBasedCellPopulation< SPACE_DIM > *pCellPopulation) |
| virtual void | Visit (NodeBasedCellPopulation< SPACE_DIM > *pCellPopulation) |
| virtual void | Visit (PottsBasedCellPopulation< SPACE_DIM > *pCellPopulation) |
| virtual void | Visit (VertexBasedCellPopulation< SPACE_DIM > *pCellPopulation) |
Private Member Functions | |
| template<class Archive > | |
| void | serialize (Archive &archive, const unsigned int version) |
Friends | |
| class | boost::serialization::access |
Detailed Description
template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >
A class written using the visitor pattern for writing population elements from a cell population to file.
Definition at line 45 of file CellPopulationElementWriter.hpp.
Constructor & Destructor Documentation
| CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::CellPopulationElementWriter | ( | ) | [inline] |
Default constructor.
Definition at line 45 of file CellPopulationElementWriter.cpp.
Member Function Documentation
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::serialize | ( | Archive & | archive, | |
| const unsigned int | version | |||
| ) | [inline, private] |
Serialize the object and its member variables.
- Parameters:
-
archive the archive version the current version of this class
Reimplemented from AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 57 of file CellPopulationElementWriter.hpp.
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::Visit | ( | VertexBasedCellPopulation< SPACE_DIM > * | pCellPopulation | ) | [inline, virtual] |
Visit the population and write the data.
- Parameters:
-
pCellPopulation a pointer to the VertexBasedCellPopulation to visit.
Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 135 of file CellPopulationElementWriter.cpp.
References AbstractCellPopulation< ELEMENT_DIM, ELEMENT_DIM >::Begin(), AbstractCellPopulation< ELEMENT_DIM, ELEMENT_DIM >::End(), AbstractCellPopulation< ELEMENT_DIM, ELEMENT_DIM >::GetCellUsingLocationIndex(), VertexMesh< ELEMENT_DIM, SPACE_DIM >::GetElement(), VertexBasedCellPopulation< DIM >::GetElement(), AbstractCellPopulation< ELEMENT_DIM, ELEMENT_DIM >::GetLocationIndexUsingCell(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNodeGlobalIndex(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), AbstractCellPopulation< ELEMENT_DIM, ELEMENT_DIM >::IsCellAttachedToLocationIndex(), AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream, and VertexBasedCellPopulation< DIM >::rGetMesh().
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::Visit | ( | PottsBasedCellPopulation< SPACE_DIM > * | pCellPopulation | ) | [inline, virtual] |
Visit the population and write the data.
- Parameters:
-
pCellPopulation a pointer to the PottsBasedCellPopulation to visit.
Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 99 of file CellPopulationElementWriter.cpp.
References AbstractCellPopulation< DIM >::Begin(), AbstractCellPopulation< DIM >::End(), AbstractCellPopulation< DIM >::GetCellUsingLocationIndex(), PottsBasedCellPopulation< DIM >::GetElement(), AbstractCellPopulation< DIM >::GetLocationIndexUsingCell(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNodeGlobalIndex(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), AbstractCellPopulation< DIM >::IsCellAttachedToLocationIndex(), AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream, and PottsBasedCellPopulation< DIM >::rGetMesh().
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::Visit | ( | NodeBasedCellPopulation< SPACE_DIM > * | pCellPopulation | ) | [inline, virtual] |
Visit the population and write the data.
- Parameters:
-
pCellPopulation a pointer to the NodeBasedCellPopulation to visit.
Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 94 of file CellPopulationElementWriter.cpp.
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::Visit | ( | CaBasedCellPopulation< SPACE_DIM > * | pCellPopulation | ) | [inline, virtual] |
Visit the population and write the data.
- Parameters:
-
pCellPopulation a pointer to the CaBasedCellPopulation to visit.
Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 89 of file CellPopulationElementWriter.cpp.
| void CellPopulationElementWriter< ELEMENT_DIM, SPACE_DIM >::Visit | ( | MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM > * | pCellPopulation | ) | [inline, virtual] |
Visit the population and write the data.
- Parameters:
-
pCellPopulation a pointer to the MeshBasedCellPopulation to visit.
Implements AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 51 of file CellPopulationElementWriter.cpp.
References AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetCellUsingLocationIndex(), MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetNode(), AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::IsCellAttachedToLocationIndex(), AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream, and MeshBasedCellPopulation< ELEMENT_DIM, SPACE_DIM >::rGetMesh().
Friends And Related Function Documentation
friend class boost::serialization::access [friend] |
Needed for serialization.
Reimplemented from AbstractCellPopulationWriter< ELEMENT_DIM, SPACE_DIM >.
Definition at line 49 of file CellPopulationElementWriter.hpp.
The documentation for this class was generated from the following files:
- cell_based/src/population/writers/population_writers/CellPopulationElementWriter.hpp
- cell_based/src/population/writers/population_writers/CellPopulationElementWriter.cpp
