CellVariablesWriter< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <CellVariablesWriter.hpp>

Inherits AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >.

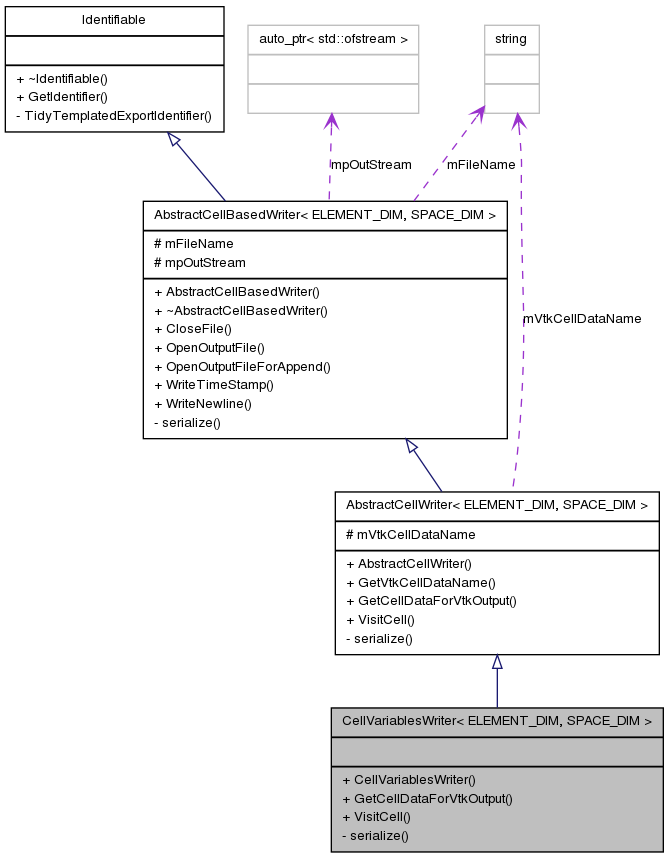

Collaboration diagram for CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >:

[legend]

List of all members.

Public Member Functions
	CellVariablesWriter ()
double	GetCellDataForVtkOutput (CellPtr pCell, AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM > *pCellPopulation)
virtual void	VisitCell (CellPtr pCell, AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM > *pCellPopulation)
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

---

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >

A class written using the visitor pattern for writing cell ages to file.

Definition at line 45 of file CellVariablesWriter.hpp.

---

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >::CellVariablesWriter

(

)

[inline]

Default constructor.

Definition at line 41 of file CellVariablesWriter.cpp.

References AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >::mVtkCellDataName.

---

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

double CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >::GetCellDataForVtkOutput	(	CellPtr	pCell,
		AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM > *	pCellPopulation
	)			[inline, virtual]

Overridden GetCellDataForVtkOutput() method.

Get a double associated with a cell. This method reduces duplication of code between the methods VisitCell() and AddVtkData().

Parameters:

	pCell	a cell
	pCellPopulation	a pointer to the cell population owning the cell

Returns:

data associated with the cell

Implements AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 48 of file CellVariablesWriter.cpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

template<class Archive >

void CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Serialize the object and its member variables.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 57 of file CellVariablesWriter.hpp.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void CellVariablesWriter< ELEMENT_DIM, SPACE_DIM >::VisitCell	(	CellPtr	pCell,
		AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM > *	pCellPopulation
	)			[inline, virtual]

Overridden VisitCell() method.

Visit a cell and write its protein concentrations.

Outputs a line of space-separated values of the form: ...[location index] [protein 1 conc] [protein 2 conc] ... [protein n conc] ...

This is appended to the output written by AbstractCellBasedWriter, which is a single value [current simulation time], followed by a tab.

Parameters:

	pCell	a cell
	pCellPopulation	a pointer to the cell population owning the cell

Implements AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 60 of file CellVariablesWriter.cpp.

References AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetLocationIndexUsingCell(), AbstractOdeBasedCellCycleModel::GetProteinConcentrations(), and AbstractCellBasedWriter< ELEMENT_DIM, SPACE_DIM >::mpOutStream.

---

Friends And Related Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCellWriter< ELEMENT_DIM, SPACE_DIM >.

Definition at line 49 of file CellVariablesWriter.hpp.

---

The documentation for this class was generated from the following files:

• cell_based/src/population/writers/cell_writers/CellVariablesWriter.hpp
• cell_based/src/population/writers/cell_writers/CellVariablesWriter.cpp
