DiagonalVertexBasedDivisionRule< SPACE_DIM > Class Template Reference

#include <DiagonalVertexBasedDivisionRule.hpp>

Inherits AbstractVertexBasedDivisionRule< SPACE_DIM >.

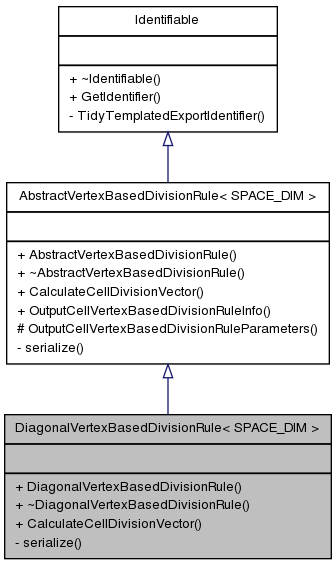

Collaboration diagram for DiagonalVertexBasedDivisionRule< SPACE_DIM >:

[legend]

List of all members.

Public Member Functions
	DiagonalVertexBasedDivisionRule ()
virtual	~DiagonalVertexBasedDivisionRule ()
virtual c_vector< double, SPACE_DIM >	CalculateCellDivisionVector (CellPtr pParentCell, VertexBasedCellPopulation< SPACE_DIM > &rCellPopulation)
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

---

Detailed Description

template<unsigned SPACE_DIM>
class DiagonalVertexBasedDivisionRule< SPACE_DIM >

A division rule for vertex-based cell populations to generate a division vector in the direction (1,1).

Definition at line 53 of file DiagonalVertexBasedDivisionRule.hpp.

---

Constructor & Destructor Documentation

template<unsigned SPACE_DIM>

DiagonalVertexBasedDivisionRule< SPACE_DIM >::DiagonalVertexBasedDivisionRule

(

)

[inline]

Default constructor.

Definition at line 75 of file DiagonalVertexBasedDivisionRule.hpp.

template<unsigned SPACE_DIM>

virtual DiagonalVertexBasedDivisionRule< SPACE_DIM >::~DiagonalVertexBasedDivisionRule

(

)

[inline, virtual]

Empty destructor.

Definition at line 80 of file DiagonalVertexBasedDivisionRule.hpp.

---

Member Function Documentation

template<unsigned SPACE_DIM>

c_vector< double, SPACE_DIM > DiagonalVertexBasedDivisionRule< SPACE_DIM >::CalculateCellDivisionVector	(	CellPtr	pParentCell,
		VertexBasedCellPopulation< SPACE_DIM > &	rCellPopulation
	)			[inline, virtual]

This function returns the diagonal division vector.

Parameters:

	pParentCell	The cell to divide
	rCellPopulation	The Vertex cell population

Returns:

the division vector.

Implements AbstractVertexBasedDivisionRule< SPACE_DIM >.

Definition at line 39 of file DiagonalVertexBasedDivisionRule.cpp.

template<unsigned SPACE_DIM>

template<class Archive >

void DiagonalVertexBasedDivisionRule< SPACE_DIM >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Serialize the object and its member variables.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from AbstractVertexBasedDivisionRule< SPACE_DIM >.

Definition at line 65 of file DiagonalVertexBasedDivisionRule.hpp.

---

The documentation for this class was generated from the following files:

• cell_based/src/population/division_rules/DiagonalVertexBasedDivisionRule.hpp
• cell_based/src/population/division_rules/DiagonalVertexBasedDivisionRule.cpp
