GammaDistributedStochasticDurationCellCycleModel Class Reference

#include <GammaDistributedStochasticDurationCellCycleModel.hpp>

Inherits AbstractSimpleCellCycleModel.

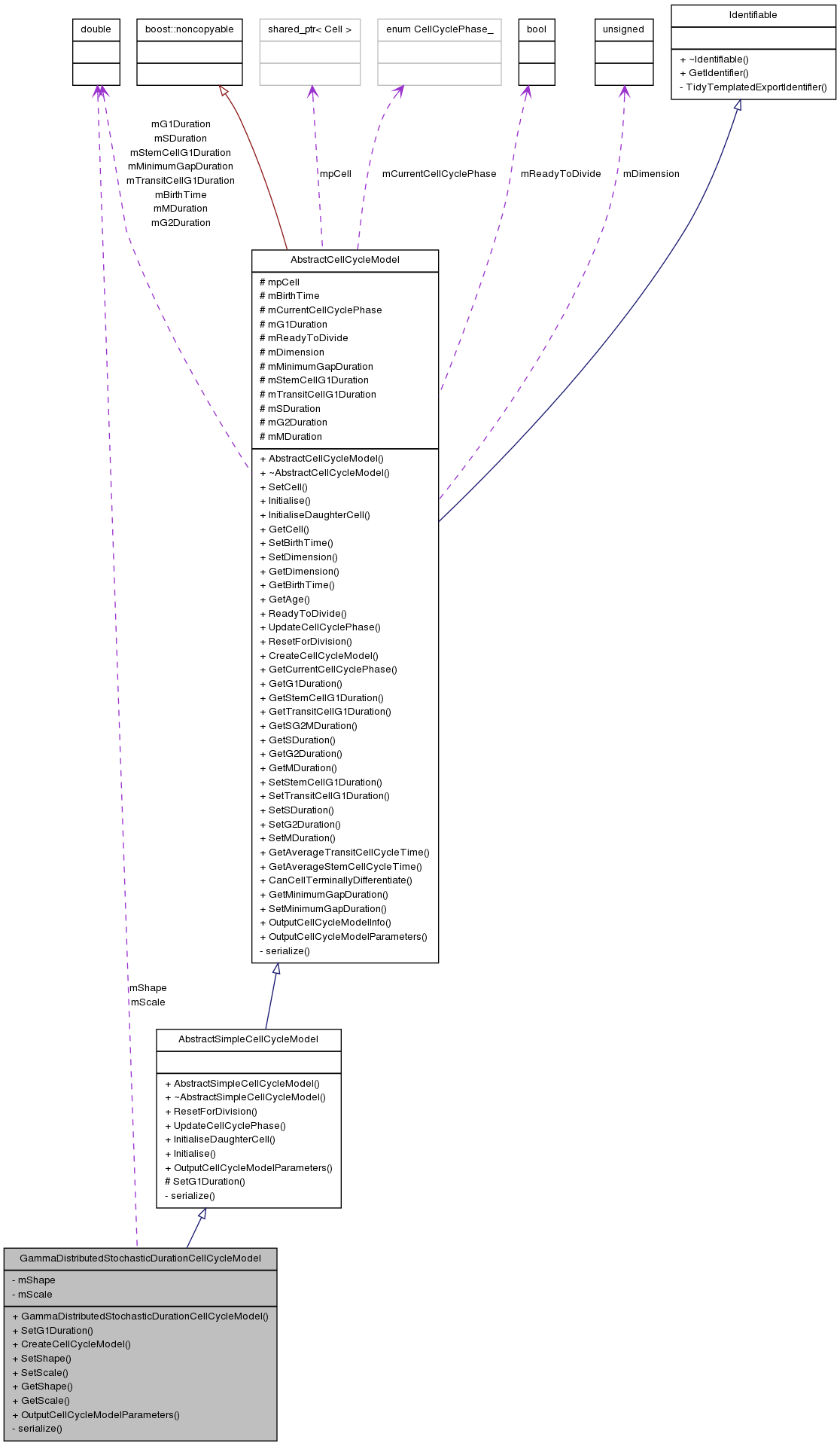

Collaboration diagram for GammaDistributedStochasticDurationCellCycleModel:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 GammaDistributedStochasticDurationCellCycleModel ()
void SetG1Duration ()
AbstractCellCycleModel * CreateCellCycleModel ()
void SetShape (double shape)
void SetScale (double scale)
double GetShape ()
double GetScale ()
virtual void OutputCellCycleModelParameters (out_stream &rParamsFile)

Private Member Functions

template<class Archive >
void serialize (Archive &archive, const unsigned int version)

Private Attributes

double mShape
double mScale

Friends

class TestSimpleCellCycleModels
class boost::serialization::access

Detailed Description

A stochastic cell-cycle model where cells keep dividing with a stochastic G1 duration drawn from a gamma distribution with specified shape and scale parameters.

Definition at line 46 of file GammaDistributedStochasticDurationCellCycleModel.hpp.

Constructor & Destructor Documentation

GammaDistributedStochasticDurationCellCycleModel::GammaDistributedStochasticDurationCellCycleModel (  )

Constructor.

Definition at line 42 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

Referenced by CreateCellCycleModel().

Member Function Documentation

AbstractCellCycleModel * GammaDistributedStochasticDurationCellCycleModel::CreateCellCycleModel (  )  [virtual]

Overridden builder method to create new copies of this cell-cycle model.

Returns:
a pointer to the GammaDistributedStochasticDurationCellCycleModel created.

Implements AbstractCellCycleModel.

Definition at line 49 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References GammaDistributedStochasticDurationCellCycleModel(), AbstractCellCycleModel::mBirthTime, AbstractCellCycleModel::mG2Duration, AbstractCellCycleModel::mMDuration, AbstractCellCycleModel::mMinimumGapDuration, mScale, AbstractCellCycleModel::mSDuration, mShape, AbstractCellCycleModel::mStemCellG1Duration, AbstractCellCycleModel::mTransitCellG1Duration, AbstractCellCycleModel::SetBirthTime(), AbstractCellCycleModel::SetG2Duration(), AbstractCellCycleModel::SetMDuration(), AbstractCellCycleModel::SetMinimumGapDuration(), SetScale(), AbstractCellCycleModel::SetSDuration(), SetShape(), AbstractCellCycleModel::SetStemCellG1Duration(), and AbstractCellCycleModel::SetTransitCellG1Duration().

double GammaDistributedStochasticDurationCellCycleModel::GetScale (  )
Returns:
mScale.

Definition at line 117 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References mScale.

double GammaDistributedStochasticDurationCellCycleModel::GetShape (  )
Returns:
mShape.

Definition at line 112 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References mShape.

void GammaDistributedStochasticDurationCellCycleModel::OutputCellCycleModelParameters ( out_stream &  rParamsFile  )  [virtual]

Overridden OutputCellCycleModelParameters() method.

Parameters:
rParamsFile the file stream to which the parameters are output

Reimplemented from AbstractSimpleCellCycleModel.

Definition at line 122 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References mScale, and mShape.

template<class Archive >
void GammaDistributedStochasticDurationCellCycleModel::serialize ( Archive &  archive,
const unsigned int  version
) [inline, private]

Archive the cell-cycle model and random number generator, never used directly - boost uses this.

Parameters:
archive the archive
version the current version of this class

Reimplemented from AbstractSimpleCellCycleModel.

Definition at line 67 of file GammaDistributedStochasticDurationCellCycleModel.hpp.

References SerializableSingleton< SINGLETON_CLASS >::GetSerializationWrapper(), RandomNumberGenerator::Instance(), mScale, and mShape.

void GammaDistributedStochasticDurationCellCycleModel::SetG1Duration (  )  [virtual]

Overridden SetG1Duration().

Reimplemented from AbstractSimpleCellCycleModel.

Definition at line 84 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References RandomNumberGenerator::GammaRandomDeviate(), RandomNumberGenerator::Instance(), AbstractCellCycleModel::mG1Duration, AbstractCellCycleModel::mpCell, mScale, mShape, and NEVER_REACHED.

void GammaDistributedStochasticDurationCellCycleModel::SetScale ( double  scale  )
Returns:
mScale.
Parameters:
scale the value of the scale parameter

Definition at line 107 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References mScale.

Referenced by CreateCellCycleModel().

void GammaDistributedStochasticDurationCellCycleModel::SetShape ( double  shape  )

Set mShape.

Parameters:
shape the value of the shape parameter

Definition at line 102 of file GammaDistributedStochasticDurationCellCycleModel.cpp.

References mShape.

Referenced by CreateCellCycleModel().

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractSimpleCellCycleModel.

Definition at line 59 of file GammaDistributedStochasticDurationCellCycleModel.hpp.

Member Data Documentation

double GammaDistributedStochasticDurationCellCycleModel::mScale [private]

The scale parameter of the gamma distribution. This must be a positive real number.

Definition at line 56 of file GammaDistributedStochasticDurationCellCycleModel.hpp.

Referenced by CreateCellCycleModel(), GetScale(), OutputCellCycleModelParameters(), serialize(), SetG1Duration(), and SetScale().

double GammaDistributedStochasticDurationCellCycleModel::mShape [private]

The shape parameter of the gamma distribution. This must be a positive real number.

Definition at line 53 of file GammaDistributedStochasticDurationCellCycleModel.hpp.

Referenced by CreateCellCycleModel(), GetShape(), OutputCellCycleModelParameters(), serialize(), SetG1Duration(), and SetShape().

The documentation for this class was generated from the following files:
