Hdf5ToVtkConverter< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <Hdf5ToVtkConverter.hpp>

Inherits AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >.

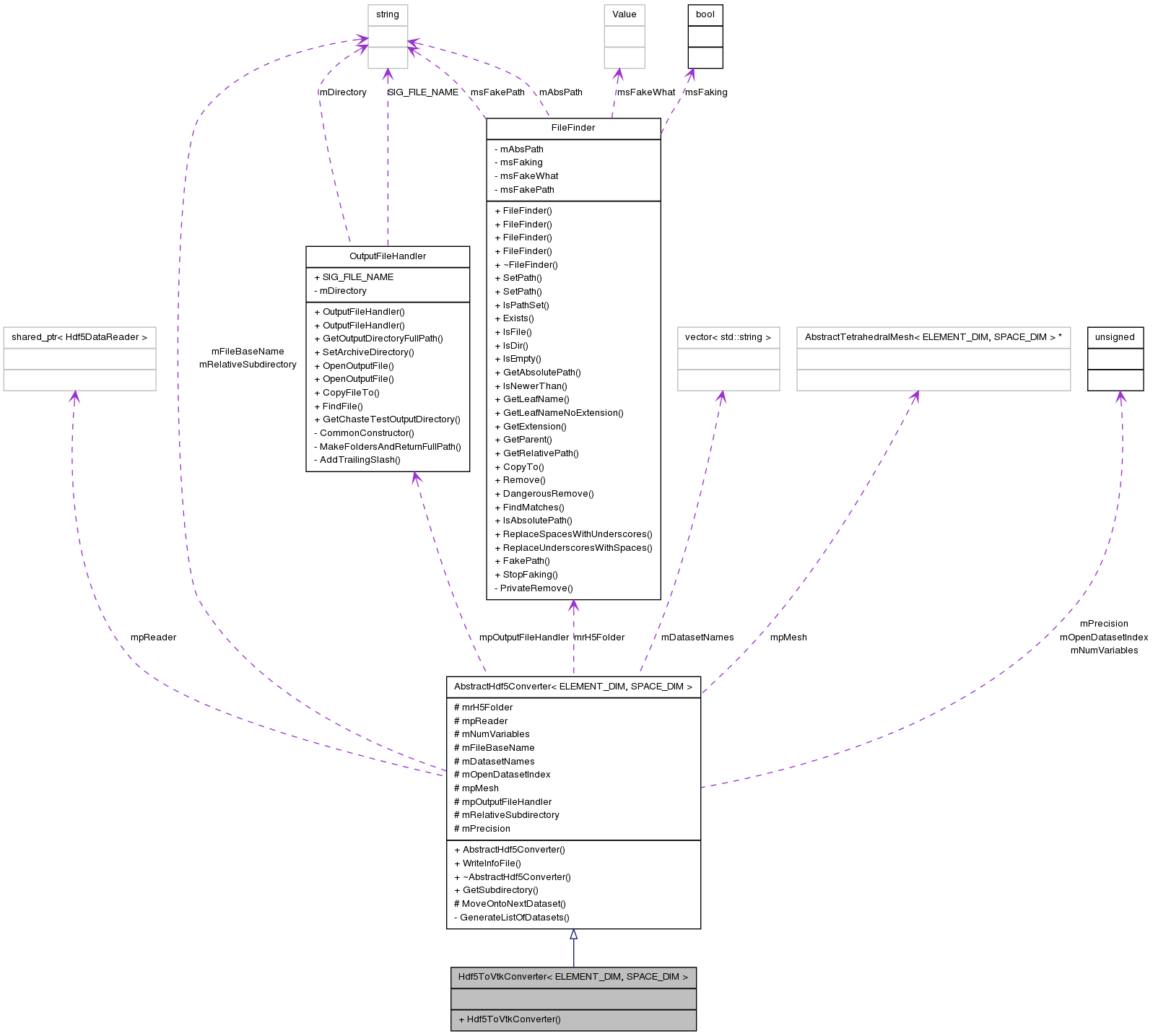

Collaboration diagram for Hdf5ToVtkConverter< ELEMENT_DIM, SPACE_DIM >:

[legend]

List of all members.

Public Member Functions
	Hdf5ToVtkConverter (const FileFinder &rInputDirectory, const std::string &rFileBaseName, AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM > *pMesh, bool parallelVtk, bool usingOriginalNodeOrdering)

---

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>
class Hdf5ToVtkConverter< ELEMENT_DIM, SPACE_DIM >

This class converts from Hdf5 format to Vtk format. The output will be one .vtu file with separate vtkPointData for each time step.

Definition at line 46 of file Hdf5ToVtkConverter.hpp.

---

Constructor & Destructor Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

Hdf5ToVtkConverter< ELEMENT_DIM, SPACE_DIM >::Hdf5ToVtkConverter	(	const FileFinder &	rInputDirectory,
		const std::string &	rFileBaseName,
		AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM > *	pMesh,
		bool	parallelVtk,
		bool	usingOriginalNodeOrdering
	)			[inline]

Constructor, which does the conversion and writes the .vtu file.

Note:

This method is collective, and hence must be called by all processes.

Parameters:

	rInputDirectory	The input directory, relative to CHASTE_TEST_OUTPUT, where the .h5 file has been written
	rFileBaseName	The base name of the data file.
	pMesh	Pointer to the mesh.
	parallelVtk	When true, write with .pvtu and fragment meshes (only works for DistributedTetrahedralMesh)
	usingOriginalNodeOrdering	Whether HDF5 output was written using the original node ordering

Todo:

What if the mesh has been scaled, translated or rotated?

Definition at line 49 of file Hdf5ToVtkConverter.cpp.

References VtkMeshWriter< ELEMENT_DIM, SPACE_DIM >::AddPointData(), RelativeTo::ChasteTestOutput, DistributedVectorFactory::CreateVec(), PetscTools::Destroy(), AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetDistributedVectorFactory(), DistributedTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::GetNumLocalNodes(), AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), FileFinder::GetRelativePath(), AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >::mNumVariables, AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >::MoveOntoNextDataset(), AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >::mpMesh, AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >::mpReader, AbstractHdf5Converter< ELEMENT_DIM, SPACE_DIM >::mRelativeSubdirectory, VtkMeshWriter< ELEMENT_DIM, SPACE_DIM >::SetParallelFiles(), VtkMeshWriter< ELEMENT_DIM, SPACE_DIM >::WriteFilesUsingMesh(), and AbstractMeshWriter< ELEMENT_DIM, SPACE_DIM >::WriteFilesUsingMeshReader().

---

The documentation for this class was generated from the following files:

• pde/src/postprocessing/Hdf5ToVtkConverter.hpp
• pde/src/postprocessing/Hdf5ToVtkConverter.cpp
