NodeAttributes< SPACE_DIM > Class Template Reference

#include <NodeAttributes.hpp>

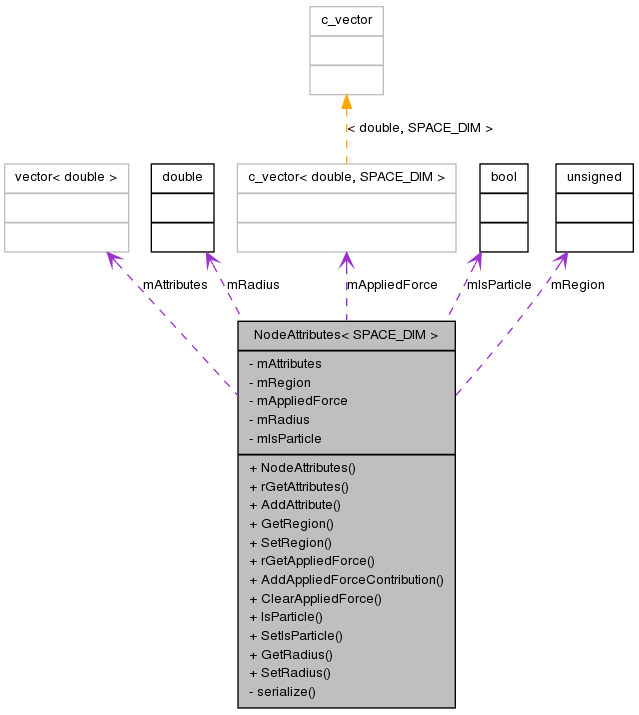

Collaboration diagram for NodeAttributes< SPACE_DIM >:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 NodeAttributes ()
std::vector< double > & rGetAttributes ()
void AddAttribute (double attribute)
unsigned GetRegion ()
void SetRegion (unsigned region)
c_vector< double, SPACE_DIM > & rGetAppliedForce ()
void AddAppliedForceContribution (c_vector< double, SPACE_DIM > &appliedForceContribution)
void ClearAppliedForce ()
bool IsParticle ()
void SetIsParticle (bool isParticle)
double GetRadius ()
void SetRadius (double radius)

Private Member Functions

template<class Archive >
void serialize (Archive &archive, const unsigned int version)

Private Attributes

std::vector< double > mAttributes
unsigned mRegion
c_vector< double, SPACE_DIM > mAppliedForce
double mRadius
bool mIsParticle

Friends

class boost::serialization::access

Detailed Description

template<unsigned SPACE_DIM>
class NodeAttributes< SPACE_DIM >

A container for attributes associated with the Node class.

Definition at line 47 of file NodeAttributes.hpp.

Constructor & Destructor Documentation

template<unsigned SPACE_DIM>
NodeAttributes< SPACE_DIM >::NodeAttributes (  )  [inline]

Defaults all variables.

Definition at line 42 of file NodeAttributes.cpp.

Member Function Documentation

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::AddAppliedForceContribution ( c_vector< double, SPACE_DIM > &  appliedForceContribution  )  [inline]

Add a contribution to the force vector

Parameters:
appliedForceContribution the contribution to add to mAppliedForce

Definition at line 83 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mAppliedForce.

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::AddAttribute ( double  attribute  )  [inline]

Push an attribute back onto mAttributes

Parameters:
attribute the value of the attribute.

Definition at line 59 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mAttributes.

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::ClearAppliedForce (  )  [inline]

Set mAppliedForce to a zero vector.

Definition at line 89 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mAppliedForce.

template<unsigned SPACE_DIM>
double NodeAttributes< SPACE_DIM >::GetRadius (  )  [inline]

Return the radius associated with the Node

Returns:
mRadius

Definition at line 110 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mRadius.

template<unsigned SPACE_DIM>
unsigned NodeAttributes< SPACE_DIM >::GetRegion (  )  [inline]

Get the region ID

Returns:
mRegion

Definition at line 65 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mRegion.

template<unsigned SPACE_DIM>
bool NodeAttributes< SPACE_DIM >::IsParticle (  )  [inline]

Get whether this node is a particle, or not.

Returns:
mIsParticle

Definition at line 98 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mIsParticle.

template<unsigned SPACE_DIM>
c_vector< double, SPACE_DIM > & NodeAttributes< SPACE_DIM >::rGetAppliedForce (  )  [inline]

Get the current value of the applied force on the node.

Returns:
mAppliedForce

Definition at line 77 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mAppliedForce.

template<unsigned SPACE_DIM>
std::vector< double > & NodeAttributes< SPACE_DIM >::rGetAttributes (  )  [inline]
Returns:
mAttributes

Definition at line 53 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mAttributes.

template<unsigned SPACE_DIM>
template<class Archive >
void NodeAttributes< SPACE_DIM >::serialize ( Archive &  archive,
const unsigned int  version
) [inline, private]

Archive the member variables.

Parameters:
archive the archive
version the current version of this class

Definition at line 76 of file NodeAttributes.hpp.

References NodeAttributes< SPACE_DIM >::mAppliedForce, NodeAttributes< SPACE_DIM >::mAttributes, NodeAttributes< SPACE_DIM >::mIsParticle, NodeAttributes< SPACE_DIM >::mRadius, and NodeAttributes< SPACE_DIM >::mRegion.

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::SetIsParticle ( bool  isParticle  )  [inline]

Set the flag mIsParticle.

Parameters:
isParticle whether this node is particle or not.

Definition at line 104 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mIsParticle.

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::SetRadius ( double  radius  )  [inline]

Set the value of the radius.

Parameters:
radius the value to assign to mRadius. Must be >= 0.0

Definition at line 116 of file NodeAttributes.cpp.

References EXCEPTION, and NodeAttributes< SPACE_DIM >::mRadius.

template<unsigned SPACE_DIM>
void NodeAttributes< SPACE_DIM >::SetRegion ( unsigned  region  )  [inline]

Set the region ID

Parameters:
region the value to to assign to mRegion.

Definition at line 71 of file NodeAttributes.cpp.

References NodeAttributes< SPACE_DIM >::mRegion.

Friends And Related Function Documentation

template<unsigned SPACE_DIM>
friend class boost::serialization::access [friend]

Needed for serialization.

Definition at line 67 of file NodeAttributes.hpp.

Member Data Documentation

template<unsigned SPACE_DIM>
c_vector<double, SPACE_DIM> NodeAttributes< SPACE_DIM >::mAppliedForce [private]

For mutable nodes in OffLatticeSimulations, a container for the force accumulated on this node.

Definition at line 58 of file NodeAttributes.hpp.

Referenced by NodeAttributes< SPACE_DIM >::AddAppliedForceContribution(), NodeAttributes< SPACE_DIM >::ClearAppliedForce(), NodeAttributes< SPACE_DIM >::rGetAppliedForce(), and NodeAttributes< SPACE_DIM >::serialize().

template<unsigned SPACE_DIM>
std::vector<double> NodeAttributes< SPACE_DIM >::mAttributes [private]

Arbitrary attributes that a user gives meaning to

Definition at line 52 of file NodeAttributes.hpp.

Referenced by NodeAttributes< SPACE_DIM >::AddAttribute(), NodeAttributes< SPACE_DIM >::rGetAttributes(), and NodeAttributes< SPACE_DIM >::serialize().

template<unsigned SPACE_DIM>
bool NodeAttributes< SPACE_DIM >::mIsParticle [private]

Whether the node represents a particle or not: Used for NodeBasedCellPopulationWithParticles

Definition at line 64 of file NodeAttributes.hpp.

Referenced by NodeAttributes< SPACE_DIM >::IsParticle(), NodeAttributes< SPACE_DIM >::serialize(), and NodeAttributes< SPACE_DIM >::SetIsParticle().

template<unsigned SPACE_DIM>
double NodeAttributes< SPACE_DIM >::mRadius [private]

The radius associated with the Node

Definition at line 61 of file NodeAttributes.hpp.

Referenced by NodeAttributes< SPACE_DIM >::GetRadius(), NodeAttributes< SPACE_DIM >::serialize(), and NodeAttributes< SPACE_DIM >::SetRadius().

template<unsigned SPACE_DIM>
unsigned NodeAttributes< SPACE_DIM >::mRegion [private]

The ID of the region of mesh in which the Node lies

Definition at line 55 of file NodeAttributes.hpp.

Referenced by NodeAttributes< SPACE_DIM >::GetRegion(), NodeAttributes< SPACE_DIM >::serialize(), and NodeAttributes< SPACE_DIM >::SetRegion().

The documentation for this class was generated from the following files:
