PottsElement< DIM > Class Template Reference

#include <PottsElement.hpp>

Inherits MutableElement< DIM, DIM >.

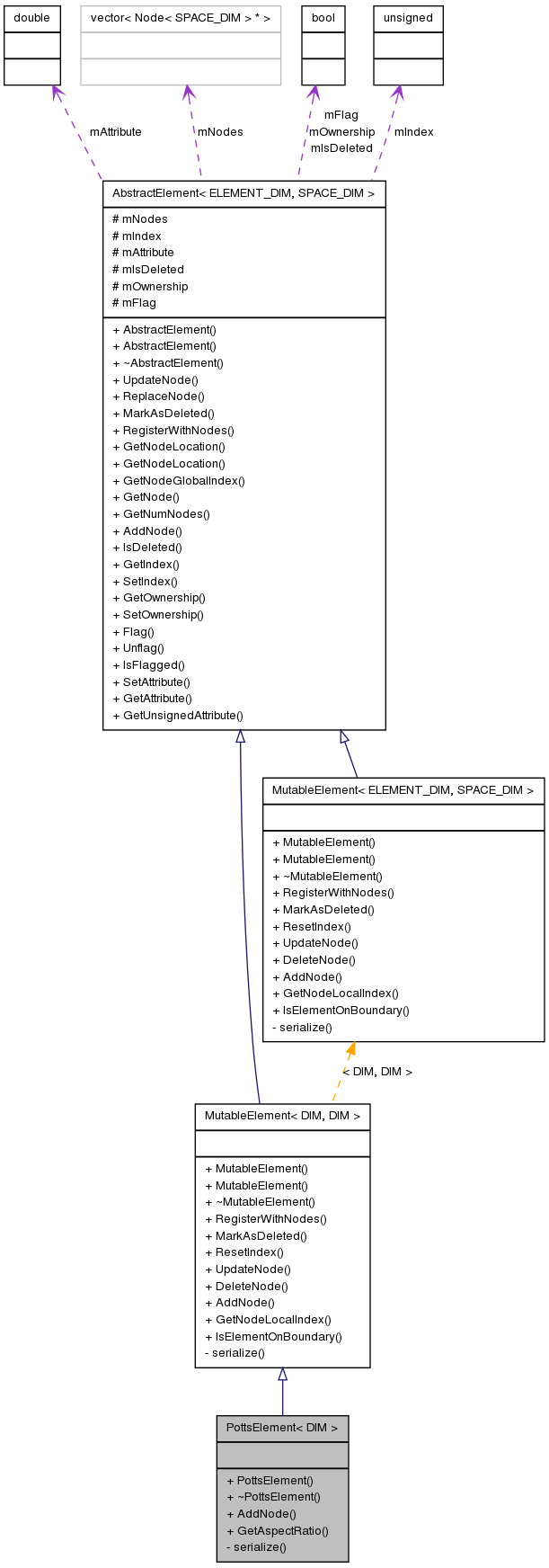

Collaboration diagram for PottsElement< DIM >:

[legend]

List of all members.

Public Member Functions
	PottsElement (unsigned index, const std::vector< Node< DIM > * > &rNodes)
	~PottsElement ()
void	AddNode (Node< DIM > *pNode, const unsigned &rIndex=UINT_MAX)
double	GetAspectRatio ()
Private Member Functions
template<class Archive >
void	serialize (Archive &archive, const unsigned int version)
Friends
class	boost::serialization::access

---

Detailed Description

template<unsigned DIM>
class PottsElement< DIM >

An element class for use in the PottsMesh class.

The main difference between this and the Element class is that a PottsElement can have a variable number of nodes associated with it and these represent the lattice sites contained in the element. As they are just a collection of sites there is no concept of Element Dimension.

Definition at line 55 of file PottsElement.hpp.

---

Constructor & Destructor Documentation

template<unsigned DIM>

PottsElement< DIM >::PottsElement	(	unsigned	index,
		const std::vector< Node< DIM > * > &	rNodes
	)			[inline]

Constructor.

Parameters:

	index	global index of the element
	rNodes	vector of Nodes associated with the element

Definition at line 45 of file PottsElement.cpp.

References MutableElement< DIM, DIM >::RegisterWithNodes().

template<unsigned DIM>

PottsElement< DIM >::~PottsElement

(

)

[inline]

Destructor.

Definition at line 52 of file PottsElement.cpp.

---

Member Function Documentation

template<unsigned DIM>

void PottsElement< DIM >::AddNode	(	Node< DIM > *	pNode,
		const unsigned &	rIndex = UINT_MAX
	)			[inline]

Add node to element. Note that we don't care about ordering in a potts element so just add it to the end of the mNodes vector.

Parameters:

	pNode	is a pointer to the new node
	rIndex	the location in this->mNodes to place node. Defaults to the end.

Definition at line 57 of file PottsElement.cpp.

References Node< SPACE_DIM >::AddElement(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::mIndex, and AbstractElement< ELEMENT_DIM, SPACE_DIM >::mNodes.

template<unsigned DIM>

double PottsElement< DIM >::GetAspectRatio

(

)

[inline]

Method to calculate the aspect ratio of the element. Currently only works on 2D

Returns:

the aspect ratio

Definition at line 67 of file PottsElement.cpp.

References EXCEPTION, AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), AbstractElement< ELEMENT_DIM, SPACE_DIM >::mNodes, and NEVER_REACHED.

template<unsigned DIM>

template<class Archive >

void PottsElement< DIM >::serialize	(	Archive &	archive,
		const unsigned int	version
	)			[inline, private]

Serialize the object and its member variables.

Note that serialization of the mesh and cells is handled by load/save_construct_data.

Note also that member data related to writers is not saved - output must be set up again by the caller after a restart.

Parameters:

	archive	the archive
	version	the current version of this class

Reimplemented from MutableElement< DIM, DIM >.

Definition at line 73 of file PottsElement.hpp.

---

Friends And Related Function Documentation

template<unsigned DIM>

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from MutableElement< DIM, DIM >.

Definition at line 60 of file PottsElement.hpp.

---

The documentation for this class was generated from the following files:

• cell_based/src/mesh/PottsElement.hpp
• cell_based/src/mesh/PottsElement.cpp
