QuadraturePointsGroup< DIM > Class Template Reference

#include <QuadraturePointsGroup.hpp>

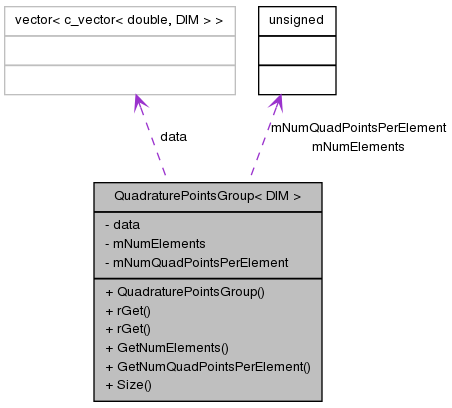

Collaboration diagram for QuadraturePointsGroup< DIM >:

[legend]

List of all members.

Public Member Functions
	QuadraturePointsGroup (AbstractTetrahedralMesh< DIM, DIM > &rMesh, GaussianQuadratureRule< DIM > &rQuadRule)
c_vector< double, DIM > &	rGet (unsigned elementIndex, unsigned quadIndex)
c_vector< double, DIM > &	rGet (unsigned i)
unsigned	GetNumElements () const
unsigned	GetNumQuadPointsPerElement () const
unsigned	Size () const
Private Attributes
std::vector< c_vector< double, DIM > >	data
unsigned	mNumElements
unsigned	mNumQuadPointsPerElement

---

Detailed Description

template<unsigned DIM>
class QuadraturePointsGroup< DIM >

A simple class which takes in a mesh and a quadrature rule, and collects all the quadrature points in physical space (rather than in natural element coordinates) together in one data structure, for access.

In a distributed mesh, a set of quad points can still be accessed for a given element but then any missing data is marked with DOUBLE_UNSET

Definition at line 54 of file QuadraturePointsGroup.hpp.

---

Constructor & Destructor Documentation

template<unsigned DIM>

QuadraturePointsGroup< DIM >::QuadraturePointsGroup	(	AbstractTetrahedralMesh< DIM, DIM > &	rMesh,
		GaussianQuadratureRule< DIM > &	rQuadRule
	)			[inline]

Constructor takes in a mesh and a rule and computes and stores all the quad points in physical space.

Parameters:

	rMesh
	rQuadRule

Definition at line 40 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::data, DOUBLE_UNSET, AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::GetElementIteratorBegin(), AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::GetElementIteratorEnd(), AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::GetNumElements(), GaussianQuadratureRule< ELEMENT_DIM >::GetNumQuadPoints(), QuadraturePointsGroup< DIM >::mNumElements, QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement, and GaussianQuadratureRule< ELEMENT_DIM >::rGetQuadPoint().

---

Member Function Documentation

template<unsigned DIM>

unsigned QuadraturePointsGroup< DIM >::GetNumElements

(

)

const [inline]

Returns:

number of elements in the mesh that was given in the constructor

Definition at line 98 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::mNumElements.

template<unsigned DIM>

unsigned QuadraturePointsGroup< DIM >::GetNumQuadPointsPerElement

(

)

const [inline]

Returns:

number of quad points per element in the rule that was given in the constructor

Definition at line 104 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement.

template<unsigned DIM>

c_vector< double, DIM > & QuadraturePointsGroup< DIM >::rGet

(

unsigned

i

)

[inline]

Returns:

the i-th stored quadrature point.

Parameters:

i

Definition at line 91 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::data, QuadraturePointsGroup< DIM >::mNumElements, and QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement.

template<unsigned DIM>

c_vector< double, DIM > & QuadraturePointsGroup< DIM >::rGet	(	unsigned	elementIndex,
		unsigned	quadIndex
	)			[inline]

Returns:

a stored quadrature point by element index and quad index in the element.

Parameters:

	elementIndex
	quadIndex

Definition at line 83 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::data, QuadraturePointsGroup< DIM >::mNumElements, and QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement.

Referenced by FineCoarseMeshPair< DIM >::ComputeFineElementsAndWeightsForCoarseQuadPoints().

template<unsigned DIM>

unsigned QuadraturePointsGroup< DIM >::Size

(

)

const [inline]

Returns:

total size, i.e. total number of quad points, i.e. num_elem times num_quad_points_per_elem

Definition at line 110 of file QuadraturePointsGroup.cpp.

References QuadraturePointsGroup< DIM >::mNumElements, and QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement.

Referenced by FineCoarseMeshPair< DIM >::ComputeFineElementsAndWeightsForCoarseQuadPoints().

---

Member Data Documentation

template<unsigned DIM>

std::vector<c_vector<double,DIM> > QuadraturePointsGroup< DIM >::data [private]

The quadrature points in physical space

Definition at line 59 of file QuadraturePointsGroup.hpp.

Referenced by QuadraturePointsGroup< DIM >::QuadraturePointsGroup(), and QuadraturePointsGroup< DIM >::rGet().

template<unsigned DIM>

unsigned QuadraturePointsGroup< DIM >::mNumElements [private]

Number of elements in given mesh

Definition at line 62 of file QuadraturePointsGroup.hpp.

Referenced by QuadraturePointsGroup< DIM >::GetNumElements(), QuadraturePointsGroup< DIM >::QuadraturePointsGroup(), QuadraturePointsGroup< DIM >::rGet(), and QuadraturePointsGroup< DIM >::Size().

template<unsigned DIM>

unsigned QuadraturePointsGroup< DIM >::mNumQuadPointsPerElement [private]

Number of quad points per element in given rule

Definition at line 65 of file QuadraturePointsGroup.hpp.

Referenced by QuadraturePointsGroup< DIM >::GetNumQuadPointsPerElement(), QuadraturePointsGroup< DIM >::QuadraturePointsGroup(), QuadraturePointsGroup< DIM >::rGet(), and QuadraturePointsGroup< DIM >::Size().

---

The documentation for this class was generated from the following files:

• pde/src/common/QuadraturePointsGroup.hpp
• pde/src/common/QuadraturePointsGroup.cpp
