RadialSloughingCellKiller Class Reference

#include <RadialSloughingCellKiller.hpp>

Inherits AbstractCellKiller< 2 >.

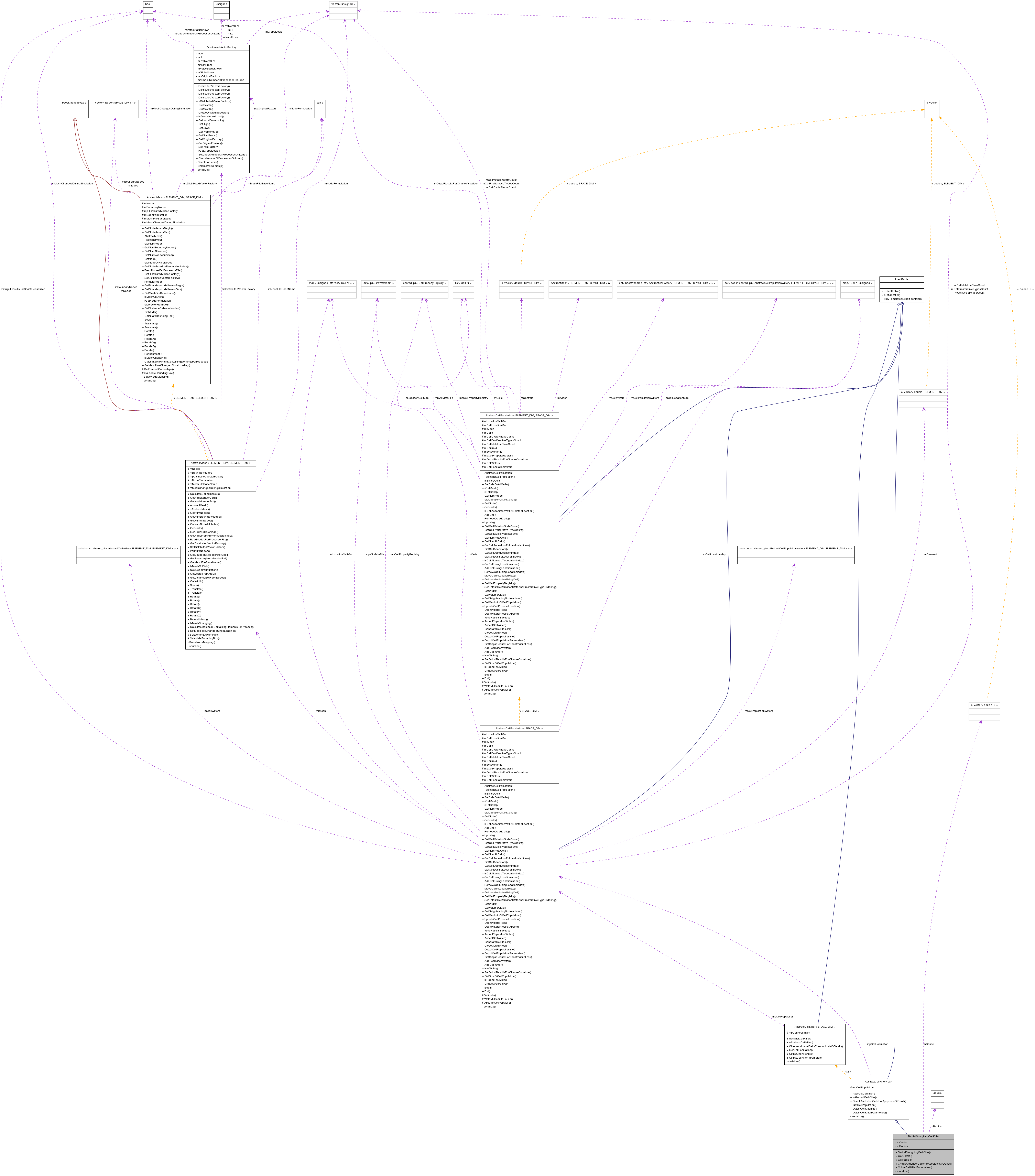

Collaboration diagram for RadialSloughingCellKiller:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RadialSloughingCellKiller (AbstractCellPopulation< 2 > *pCellPopulation, c_vector< double, 2 > centre, double radius)
c_vector< double, 2 > GetCentre () const
double GetRadius () const
virtual void CheckAndLabelCellsForApoptosisOrDeath ()
void OutputCellKillerParameters (out_stream &rParamsFile)

Private Member Functions

template<class Archive >
void serialize (Archive &archive, const unsigned int version)

Private Attributes

c_vector< double, 2 > mCentre
double mRadius

Friends

class boost::serialization::access

Detailed Description

Radial sloughing cell killer for use with the crypt projection model.

Kills cells if they are outside a circle whose centre and radius can be passed in but are take default values.

Definition at line 50 of file RadialSloughingCellKiller.hpp.

Constructor & Destructor Documentation

RadialSloughingCellKiller::RadialSloughingCellKiller ( AbstractCellPopulation< 2 > *  pCellPopulation,
c_vector< double, 2 >  centre,
double  radius
)

Constructor.

Parameters:
pCellPopulation pointer to the cell population.
centre the centre of death.
radius the radius of death.

Definition at line 38 of file RadialSloughingCellKiller.cpp.

Member Function Documentation

void RadialSloughingCellKiller::CheckAndLabelCellsForApoptosisOrDeath (  )  [virtual]

Loop over cells and kills cells outside boundary.

Implements AbstractCellKiller< 2 >.

Definition at line 55 of file RadialSloughingCellKiller.cpp.

References AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::Begin(), AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::End(), AbstractCellPopulation< ELEMENT_DIM, SPACE_DIM >::GetLocationOfCellCentre(), mCentre, AbstractCellKiller< 2 >::mpCellPopulation, and mRadius.

c_vector< double, 2 > RadialSloughingCellKiller::GetCentre (  )  const
Returns:
mCentre.

Definition at line 45 of file RadialSloughingCellKiller.cpp.

References mCentre.

double RadialSloughingCellKiller::GetRadius (  )  const
Returns:
mRadius.

Definition at line 50 of file RadialSloughingCellKiller.cpp.

References mRadius.

void RadialSloughingCellKiller::OutputCellKillerParameters ( out_stream &  rParamsFile  )  [virtual]

Outputs cell killer parameters to file

As this method is pure virtual, it must be overridden in subclasses.

Parameters:
rParamsFile the file stream to which the parameters are output

Implements AbstractCellKiller< 2 >.

Definition at line 71 of file RadialSloughingCellKiller.cpp.

References mCentre, and mRadius.

template<class Archive >
void RadialSloughingCellKiller::serialize ( Archive &  archive,
const unsigned int  version
) [inline, private]

Boost Serialization method for archiving/checkpointing. Archives the object and its member variables.

Parameters:
archive The boost archive.
version The current version of this class.

Reimplemented from AbstractCellKiller< 2 >.

Definition at line 69 of file RadialSloughingCellKiller.hpp.

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCellKiller< 2 >.

Definition at line 60 of file RadialSloughingCellKiller.hpp.

Member Data Documentation

c_vector<double,2> RadialSloughingCellKiller::mCentre [private]

Centre of death.

Definition at line 55 of file RadialSloughingCellKiller.hpp.

Referenced by CheckAndLabelCellsForApoptosisOrDeath(), GetCentre(), and OutputCellKillerParameters().

double RadialSloughingCellKiller::mRadius [private]

Radius of death.

Definition at line 58 of file RadialSloughingCellKiller.hpp.

Referenced by CheckAndLabelCellsForApoptosisOrDeath(), GetRadius(), and OutputCellKillerParameters().

The documentation for this class was generated from the following files:
Generated by  doxygen 1.6.2
