SolidMechanicsProblemDefinition< DIM > Class Template Reference

#include <SolidMechanicsProblemDefinition.hpp>

Inherits ContinuumMechanicsProblemDefinition< DIM >.

Inherited by ElectroMechanicsProblemDefinition< DIM >.

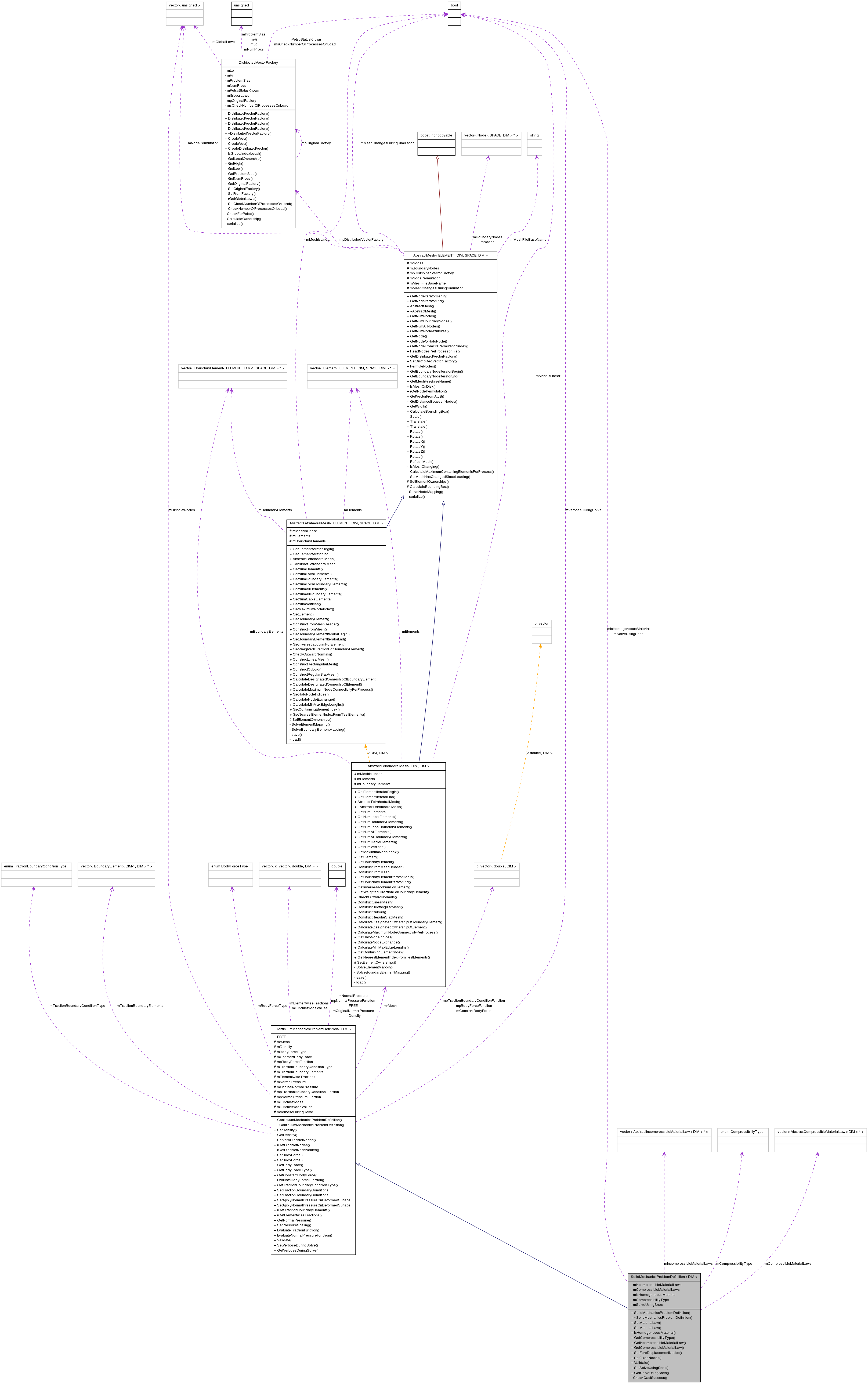

Collaboration diagram for SolidMechanicsProblemDefinition< DIM >:

Public Member Functions
	SolidMechanicsProblemDefinition (AbstractTetrahedralMesh< DIM, DIM > &rMesh)
virtual	~SolidMechanicsProblemDefinition ()
void	SetMaterialLaw (CompressibilityType compressibilityType, AbstractMaterialLaw< DIM > *pMaterialLaw)
void	SetMaterialLaw (CompressibilityType compressibilityType, std::vector< AbstractMaterialLaw< DIM > * > &rMaterialLaws)
bool	IsHomogeneousMaterial ()
CompressibilityType	GetCompressibilityType ()
AbstractIncompressibleMaterialLaw < DIM > *	GetIncompressibleMaterialLaw (unsigned elementIndex)
AbstractCompressibleMaterialLaw < DIM > *	GetCompressibleMaterialLaw (unsigned elementIndex)
void	SetZeroDisplacementNodes (std::vector< unsigned > &rFixedNodes)
void	SetFixedNodes (std::vector< unsigned > &rFixedNodes, std::vector< c_vector< double, DIM > > &rFixedNodeLocation)
virtual void	Validate ()
void	SetSolveUsingSnes (bool solveUsingSnes=true)
bool	GetSolveUsingSnes ()
Private Member Functions
void	CheckCastSuccess (CompressibilityType compressibilityType, AbstractMaterialLaw< DIM > *pMaterialLaw)
Private Attributes
std::vector < AbstractIncompressibleMaterialLaw < DIM > * >	mIncompressibleMaterialLaws
std::vector < AbstractCompressibleMaterialLaw < DIM > * >	mCompressibleMaterialLaws
bool	mIsHomogeneousMaterial
CompressibilityType	mCompressibilityType
bool	mSolveUsingSnes

Detailed Description

template<unsigned DIM>
class SolidMechanicsProblemDefinition< DIM >

A class for specifying various parts of a solid mechanics problem, in particular the material laws for the deforming body, and (inheriting functionality from a base class): fixed nodes information, the body force (per unit mass) (usually acceleration due to gravity or zero), the traction boundary conditions, and the density.

Definition at line 50 of file SolidMechanicsProblemDefinition.hpp.

Constructor & Destructor Documentation

template<unsigned DIM>

SolidMechanicsProblemDefinition< DIM >::SolidMechanicsProblemDefinition ( AbstractTetrahedralMesh< DIM, DIM > & rMesh ) [inline]

Constructor. Note body force initialised to zero and density to 1.0

Parameters:

rMesh

Tesh being solved on

Definition at line 43 of file SolidMechanicsProblemDefinition.cpp.

template<unsigned DIM>

virtual SolidMechanicsProblemDefinition< DIM >::~SolidMechanicsProblemDefinition ( ) [inline, virtual]

Destructor

Definition at line 95 of file SolidMechanicsProblemDefinition.hpp.

Member Function Documentation

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::CheckCastSuccess	(	CompressibilityType	compressibilityType,
		AbstractMaterialLaw< DIM > *	pMaterialLaw
	)			`[inline, private]`

Helper function for checking whether a dynamic_cast succeeded or not, and throwing an exception if it failed.

Parameters:

	compressibilityType	compressibility type
	pMaterialLaw	material law

Definition at line 202 of file SolidMechanicsProblemDefinition.cpp.

References EXCEPTION.

Referenced by SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw().

template<unsigned DIM>

CompressibilityType SolidMechanicsProblemDefinition< DIM >::GetCompressibilityType ( ) [inline]

Returns:: whether the material is incompressible or compressible. SetMaterialLaw() must be called before calling this. (Which can be checked by calling Validate()).

Definition at line 155 of file SolidMechanicsProblemDefinition.cpp.

References SolidMechanicsProblemDefinition< DIM >::mCompressibilityType, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, and SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws.

Referenced by CompressibleNonlinearElasticitySolver< DIM >::CompressibleNonlinearElasticitySolver(), IncompressibleNonlinearElasticitySolver< DIM >::IncompressibleNonlinearElasticitySolver(), and ElectroMechanicsProblemDefinition< DIM >::Validate().

template<unsigned DIM>

AbstractCompressibleMaterialLaw< DIM > * SolidMechanicsProblemDefinition< DIM >::GetCompressibleMaterialLaw ( unsigned elementIndex ) [inline]

Returns:: the material law for a given element, when the body is compressible. An assertion will fail if GetCompressibilityType()!=COMPRESSIBLE. If the material is homogeneous, it doesn't matter what the element index is.

Parameters:

elementIndex

index of element

Definition at line 184 of file SolidMechanicsProblemDefinition.cpp.

References AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), SolidMechanicsProblemDefinition< DIM >::mCompressibilityType, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial, and ContinuumMechanicsProblemDefinition< DIM >::mrMesh.

template<unsigned DIM>

AbstractIncompressibleMaterialLaw< DIM > * SolidMechanicsProblemDefinition< DIM >::GetIncompressibleMaterialLaw ( unsigned elementIndex ) [inline]

Returns:: the material law for a given element, when the body is incompressible. An assertion will fail if GetCompressibilityType()!=INCOMPRESSIBLE. If the material is homogeneous, it doesn't matter what the element index is.

Parameters:

elementIndex

index of element

Definition at line 166 of file SolidMechanicsProblemDefinition.cpp.

References AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetNumNodes(), SolidMechanicsProblemDefinition< DIM >::mCompressibilityType, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial, and ContinuumMechanicsProblemDefinition< DIM >::mrMesh.

template<unsigned DIM>

bool SolidMechanicsProblemDefinition< DIM >::GetSolveUsingSnes ( ) [inline]

Returns:: whether solver should use PETSc SNES nonlinear solver or not

Definition at line 196 of file SolidMechanicsProblemDefinition.hpp.

References SolidMechanicsProblemDefinition< DIM >::mSolveUsingSnes.

template<unsigned DIM>

bool SolidMechanicsProblemDefinition< DIM >::IsHomogeneousMaterial ( ) [inline]

Returns:: whether the material is homogeneous or heterogeneous. SetMaterialLaw() must be called before calling this.

Definition at line 147 of file SolidMechanicsProblemDefinition.cpp.

References SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws, and SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial.

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::SetFixedNodes	(	std::vector< unsigned > &	rFixedNodes,
		std::vector< c_vector< double, DIM > > &	rFixedNodeLocation
	)			`[inline]`

Set a list of nodes to be fixed, with their corresponding new LOCATIONS (not displacements). (This class will store as displacements though, and it is displacements that will be returned by rGetDirichletNodeValues).

Parameters:

	rFixedNodes	the fixed node indices
	rFixedNodeLocation	corresponding locations

Definition at line 52 of file SolidMechanicsProblemDefinition.cpp.

References ContinuumMechanicsProblemDefinition< DIM >::FREE, AbstractMesh< ELEMENT_DIM, SPACE_DIM >::GetNode(), ContinuumMechanicsProblemDefinition< DIM >::mDirichletNodes, ContinuumMechanicsProblemDefinition< DIM >::mDirichletNodeValues, and ContinuumMechanicsProblemDefinition< DIM >::mrMesh.

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw	(	CompressibilityType	compressibilityType,
		std::vector< AbstractMaterialLaw< DIM > * > &	rMaterialLaws
	)			`[inline]`

Set a vector of material laws for the body, one for each element in the mesh (the heterogeneous case). If compressibilityType==INCOMPRESSIBLE, the material law pointer will be checked at run-time that it is of type `AbstractIncompressibleMaterialLaw`, and similarly for the compressible case. Any previous material information will be deleted.

Parameters:

	compressibilityType	either 'INCOMPRESSIBLE' or 'COMPRESSIBLE'
	rMaterialLaws	Vector of pointers to material laws

Definition at line 110 of file SolidMechanicsProblemDefinition.cpp.

References SolidMechanicsProblemDefinition< DIM >::CheckCastSuccess(), AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM >::GetNumElements(), SolidMechanicsProblemDefinition< DIM >::mCompressibilityType, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial, and ContinuumMechanicsProblemDefinition< DIM >::mrMesh.

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw	(	CompressibilityType	compressibilityType,
		AbstractMaterialLaw< DIM > *	pMaterialLaw
	)			`[inline]`

Set a material law for the entire body (ie the homogeneous case). If compressibilityType==INCOMPRESSIBLE, the material law pointer will be checked at run-time that it is of type `AbstractIncompressibleMaterialLaw`, and similarly for the compressible case. Any previous material information will be deleted.

Parameters:

	compressibilityType	either 'INCOMPRESSIBLE' or 'COMPRESSIBLE'
	pMaterialLaw	The material law for the entire body

Definition at line 83 of file SolidMechanicsProblemDefinition.cpp.

References SolidMechanicsProblemDefinition< DIM >::CheckCastSuccess(), SolidMechanicsProblemDefinition< DIM >::mCompressibilityType, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws, and SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial.

Referenced by ElectroMechanicsProblemDefinition< DIM >::SetUseDefaultCardiacMaterialLaw().

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::SetSolveUsingSnes ( bool solveUsingSnes = true ) [inline]

Tell the solver class whether to use the PETSc SNES solver (the petsc nonlinear solver) or its own nonlinear solve implementation.

Parameters:

solveUsingSnes

solve using Snes or not

Definition at line 188 of file SolidMechanicsProblemDefinition.hpp.

References SolidMechanicsProblemDefinition< DIM >::mSolveUsingSnes.

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::SetZeroDisplacementNodes ( std::vector< unsigned > & rFixedNodes ) [inline]

Set a list of nodes (indices) to be fixed in space with zero displacement

Parameters:

rFixedNodes

the fixed nodes

Definition at line 155 of file SolidMechanicsProblemDefinition.hpp.

References ContinuumMechanicsProblemDefinition< DIM >::SetZeroDirichletNodes().

template<unsigned DIM>

void SolidMechanicsProblemDefinition< DIM >::Validate ( ) [inline, virtual]

Check all variables are set appropriately. Exceptions are thrown if any are not. Derived classes can override but should call this version as well.

Reimplemented from ContinuumMechanicsProblemDefinition< DIM >.

Reimplemented in ElectroMechanicsProblemDefinition< DIM >.

Definition at line 220 of file SolidMechanicsProblemDefinition.cpp.

References EXCEPTION, SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws, and SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws.

Member Data Documentation

template<unsigned DIM>

CompressibilityType SolidMechanicsProblemDefinition< DIM >::mCompressibilityType [private]

Whether the material is incompressible or compressible. (CompressibilityType is an enumeration).

Definition at line 73 of file SolidMechanicsProblemDefinition.hpp.

Referenced by SolidMechanicsProblemDefinition< DIM >::GetCompressibilityType(), SolidMechanicsProblemDefinition< DIM >::GetCompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::GetIncompressibleMaterialLaw(), and SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw().

template<unsigned DIM>

std::vector<AbstractCompressibleMaterialLaw<DIM>*> SolidMechanicsProblemDefinition< DIM >::mCompressibleMaterialLaws [private]

The material law, in the case of compressible material laws. This vector is either of size 1, representing a homogeneous material, or of size num_elements, representing a heterogeneous material, with a material law per element. If the material is incompressible, this vector will be of size zero.

Definition at line 67 of file SolidMechanicsProblemDefinition.hpp.

Referenced by SolidMechanicsProblemDefinition< DIM >::GetCompressibilityType(), SolidMechanicsProblemDefinition< DIM >::GetCompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::GetIncompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::IsHomogeneousMaterial(), SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw(), and SolidMechanicsProblemDefinition< DIM >::Validate().

template<unsigned DIM>

std::vector<AbstractIncompressibleMaterialLaw<DIM>*> SolidMechanicsProblemDefinition< DIM >::mIncompressibleMaterialLaws [private]

The material law, in the case of incompressible material laws. This vector is either of size 1, representing a homogeneous material, or of size num_elements, representing a heterogeneous material, with a material law per element. If he material is compressible, this vector will be of size zero.

Definition at line 61 of file SolidMechanicsProblemDefinition.hpp.

Referenced by SolidMechanicsProblemDefinition< DIM >::GetCompressibilityType(), SolidMechanicsProblemDefinition< DIM >::GetCompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::GetIncompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::IsHomogeneousMaterial(), SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw(), and SolidMechanicsProblemDefinition< DIM >::Validate().

template<unsigned DIM>

bool SolidMechanicsProblemDefinition< DIM >::mIsHomogeneousMaterial [private]

Whether the material is homogeneous (same material law everywhere) or heterogeneous

Definition at line 70 of file SolidMechanicsProblemDefinition.hpp.

Referenced by SolidMechanicsProblemDefinition< DIM >::GetCompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::GetIncompressibleMaterialLaw(), SolidMechanicsProblemDefinition< DIM >::IsHomogeneousMaterial(), and SolidMechanicsProblemDefinition< DIM >::SetMaterialLaw().

template<unsigned DIM>

bool SolidMechanicsProblemDefinition< DIM >::mSolveUsingSnes [private]

Whether the solver will use Petsc SNES or not. See dox for Set method below

Definition at line 76 of file SolidMechanicsProblemDefinition.hpp.

Referenced by SolidMechanicsProblemDefinition< DIM >::GetSolveUsingSnes(), and SolidMechanicsProblemDefinition< DIM >::SetSolveUsingSnes().
