StressPerElementWriter< DIM > Class Template Reference

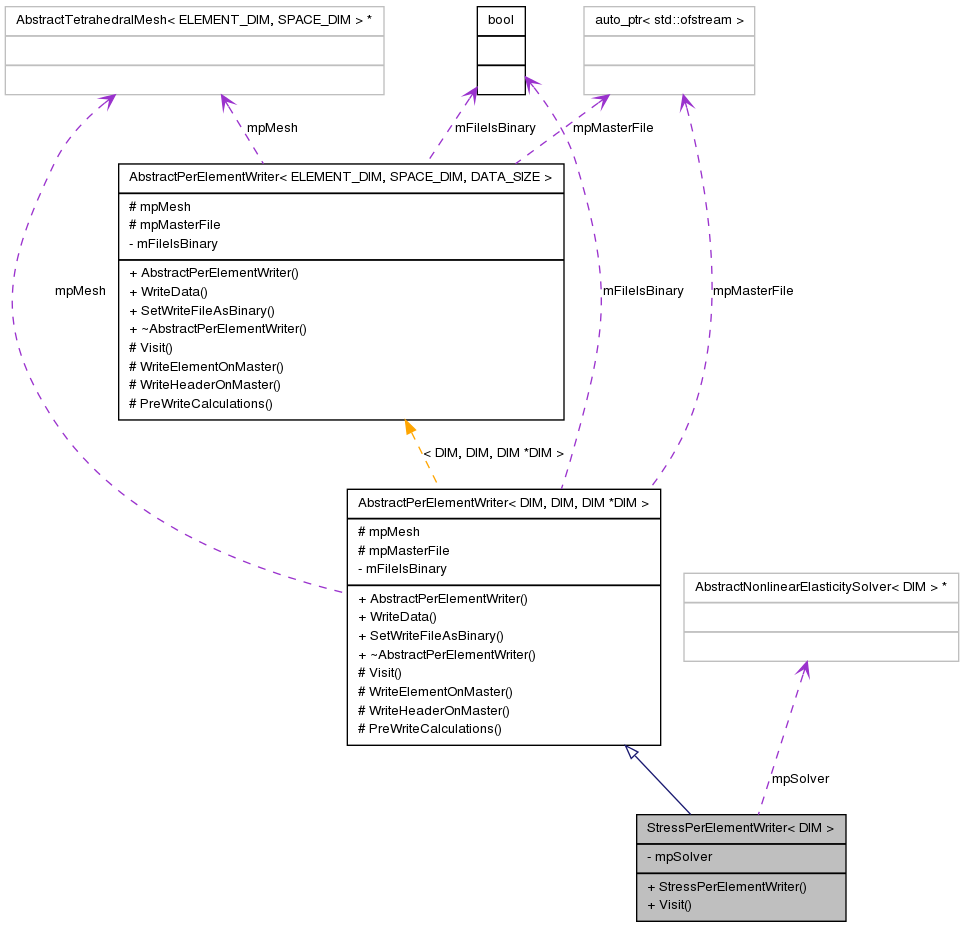

Collaboration diagram for StressPerElementWriter< DIM >:

Public Member Functions
	StressPerElementWriter (AbstractTetrahedralMesh< DIM, DIM > pMesh, AbstractNonlinearElasticitySolver< DIM > pSolver)
void	Visit (Element< DIM, DIM > pElement, unsigned localIndex, c_vector< double, DIM DIM > &rData)
Private Attributes
AbstractNonlinearElasticitySolver < DIM > *	mpSolver

Detailed Description

Helper class for dumping the stresses to file.

Currently located here so that it's easy to feed a pointer to the main class AbstractNonlinearElasticitySolver

template<unsigned DIM>

StressPerElementWriter< DIM >::StressPerElementWriter	(	AbstractTetrahedralMesh< DIM, DIM > *	pMesh,
		AbstractNonlinearElasticitySolver< DIM > *	pSolver
	)			`[inline]`

Constructor

Parameters:

	pMesh	A pointer to the mesh whose elements we want to calculate data on.
	pSolver	A pointer to the parent class, used to access data

template<unsigned DIM>

void StressPerElementWriter< DIM >::Visit	(	Element< DIM, DIM > *	pElement,
		unsigned	localIndex,
		c_vector< double, DIM *DIM > &	rData
	)			`[inline]`

How to associate an element with the stress data

Parameters:

	pElement	a locally-owned element for which to calculate or lookup some data
	localIndex	the index (in mElements) of pElement
	rData	the double-precision data to write to file (output from the method)

Todo:: #2223 Note that the localIndex is intended for DistributedQuadraticMesh, but we might need a map instead. For now, make sure that it's not a distributed mesh i.e. GetNumLocalElements == GetNumElements and the indexing is always global
