VertexElement< 1, SPACE_DIM > Class Template Reference
#include <VertexElement.hpp>
Inherits MutableElement< 1, SPACE_DIM >.

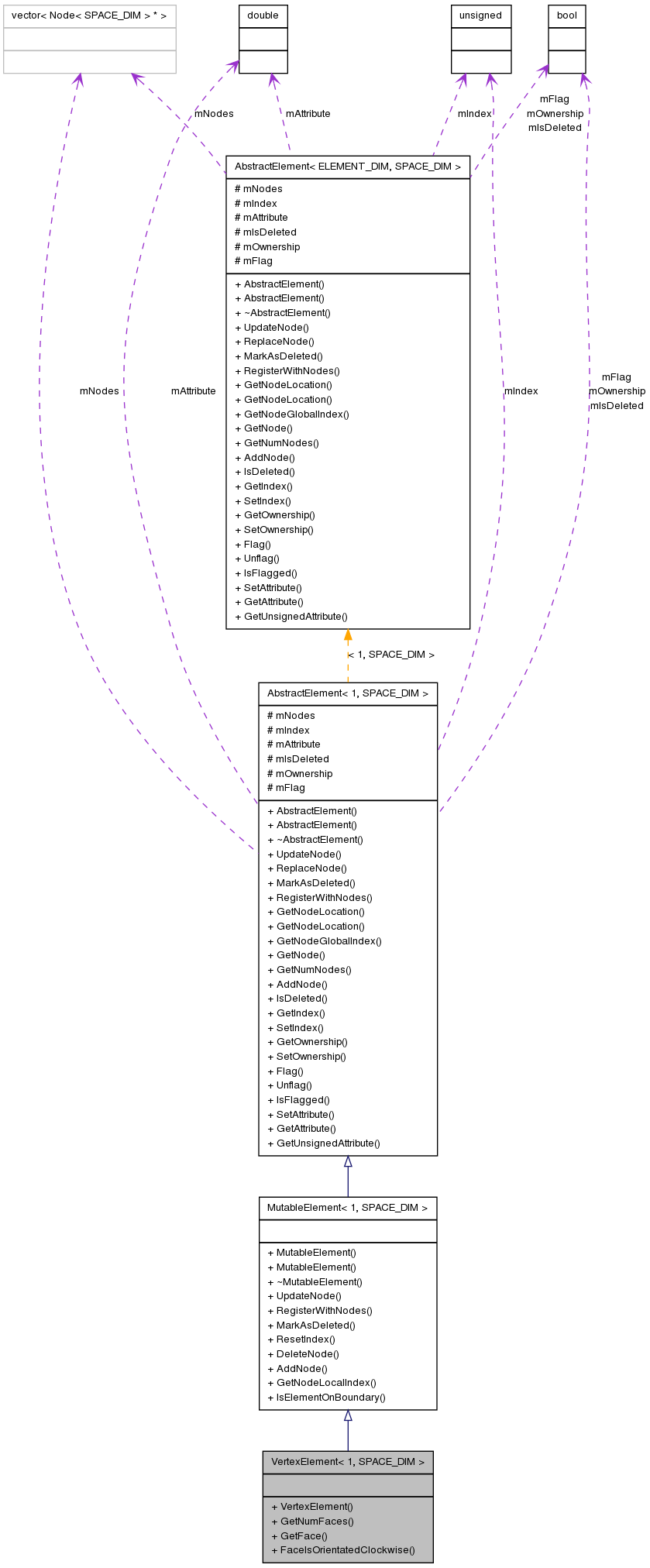

Collaboration diagram for VertexElement< 1, SPACE_DIM >:
Public Member Functions | |
| VertexElement (unsigned index, const std::vector< Node< SPACE_DIM > * > &rNodes) | |
| unsigned | GetNumFaces () const |
| VertexElement< 0, SPACE_DIM > * | GetFace (unsigned index) const |
| bool | FaceIsOrientatedClockwise (unsigned index) const |
Detailed Description
template<unsigned SPACE_DIM>
class VertexElement< 1, SPACE_DIM >
Specialization for 1d elements so we don't get errors from Boost on some compilers.
Definition at line 186 of file VertexElement.hpp.
Constructor & Destructor Documentation
template<unsigned SPACE_DIM>
| VertexElement< 1, SPACE_DIM >::VertexElement | ( | unsigned | index, | |
| const std::vector< Node< SPACE_DIM > * > & | rNodes | |||
| ) | [inline] |
Constructor which takes in a vector of nodes.
- Parameters:
-
index the index of the element in the mesh rNodes the nodes owned by the element
Specialization for 1d elements so we don't get errors from Boost on some compilers.
Definition at line 171 of file VertexElement.cpp.
Member Function Documentation
template<unsigned SPACE_DIM>
| bool VertexElement< 1, SPACE_DIM >::FaceIsOrientatedClockwise | ( | unsigned | index | ) | const [inline] |
- Returns:
- whether the face with a given index is oriented clockwise.
- Parameters:
-
index the index of the face
Definition at line 189 of file VertexElement.cpp.
template<unsigned SPACE_DIM>
| VertexElement< 0, SPACE_DIM > * VertexElement< 1, SPACE_DIM >::GetFace | ( | unsigned | index | ) | const [inline] |
- Parameters:
-
index the global index of a specified face
- Returns:
- a pointer to the face
Definition at line 183 of file VertexElement.cpp.
template<unsigned SPACE_DIM>
| unsigned VertexElement< 1, SPACE_DIM >::GetNumFaces | ( | ) | const [inline] |
- Returns:
- the number of faces owned by this element.
Definition at line 177 of file VertexElement.cpp.
The documentation for this class was generated from the following files:
- mesh/src/vertex/VertexElement.hpp
- mesh/src/vertex/VertexElement.cpp
