AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM > Class Template Reference

#include <AbstractPurkinjeCellFactory.hpp>

Inherits AbstractCardiacCellFactory< ELEMENT_DIM, SPACE_DIM >.

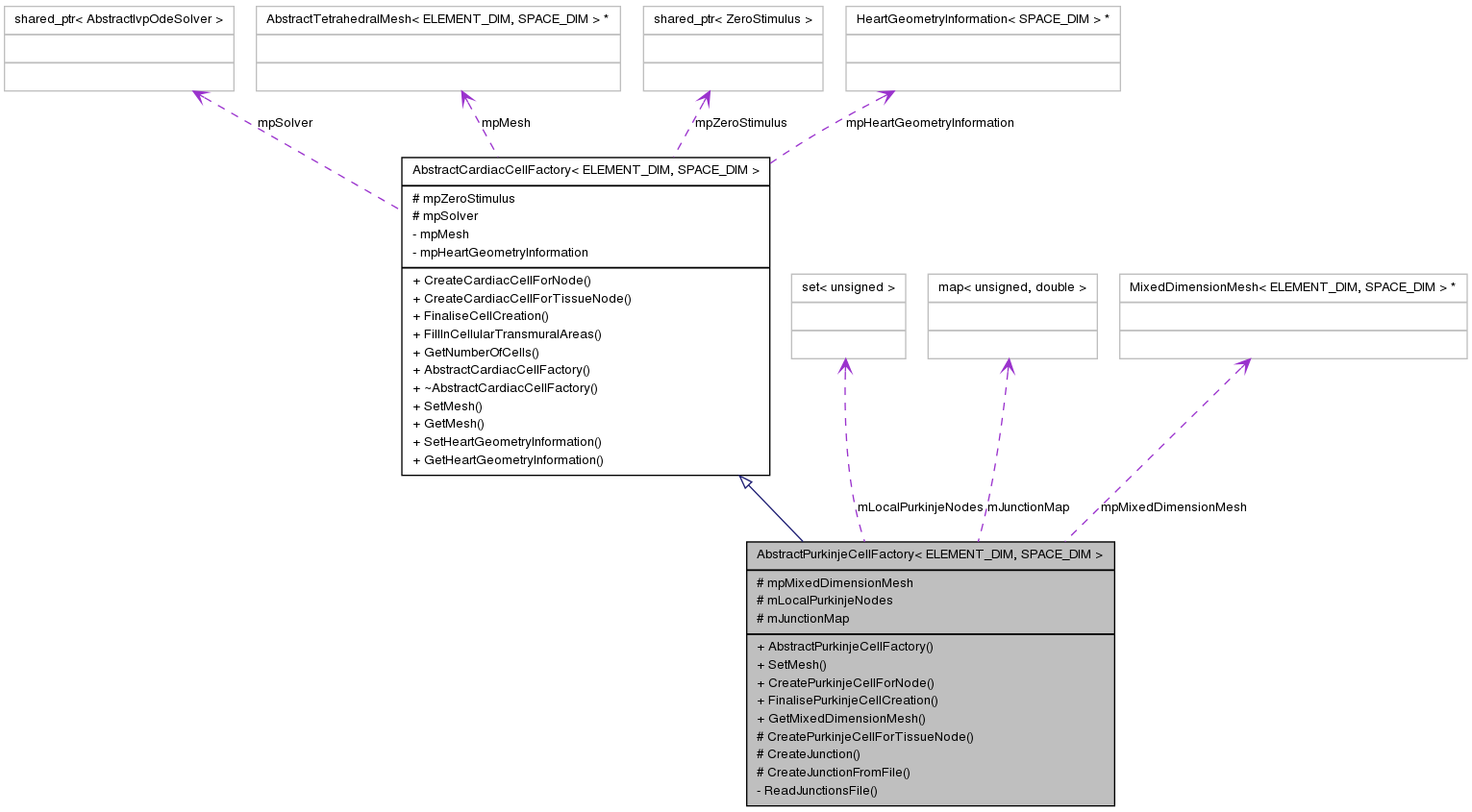

Collaboration diagram for AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >:

Public Member Functions
void	SetMesh (AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM > *pMesh)
AbstractCardiacCellInterface *	CreatePurkinjeCellForNode (Node< SPACE_DIM > pNode, AbstractCardiacCellInterface pCardiacCell)
virtual void	FinalisePurkinjeCellCreation (std::vector< AbstractCardiacCellInterface * > *pPurkinjeCellsDistributed, unsigned lo, unsigned hi)
MixedDimensionMesh < ELEMENT_DIM, SPACE_DIM > *	GetMixedDimensionMesh ()
Protected Member Functions
virtual AbstractCardiacCellInterface *	CreatePurkinjeCellForTissueNode (Node< SPACE_DIM > pNode, AbstractCardiacCellInterface pCardiacCell)=0
void	CreateJunction (const Node< SPACE_DIM > pNode, AbstractCardiacCellInterface pPurkinjeCell, AbstractCardiacCellInterface *pCardiacCell, double resistance)
void	CreateJunctionFromFile (const Node< SPACE_DIM > pNode, AbstractCardiacCellInterface pPurkinjeCell, AbstractCardiacCellInterface *pCardiacCell)
Protected Attributes
MixedDimensionMesh < ELEMENT_DIM, SPACE_DIM > *	mpMixedDimensionMesh
std::set< unsigned >	mLocalPurkinjeNodes
std::map< unsigned, double >	mJunctionMap
Private Member Functions
void	ReadJunctionsFile ()

Detailed Description

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM = ELEMENT_DIM>
class AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >

Subclass for also creating cell models for Purkinje cells. The user has to implement the CreatePurkinjeCellForTissueNode() method.

The dimensions should be 2 or 3.

Definition at line 49 of file AbstractPurkinjeCellFactory.hpp.

Member Function Documentation

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreateJunction	(	const Node< SPACE_DIM > *	pNode,
		AbstractCardiacCellInterface *	pPurkinjeCell,
		AbstractCardiacCellInterface *	pCardiacCell,
		double	resistance
	)			`[inline, protected]`

Returns:: a newly created purkinje-ventricular junction between the two cells provided.

Parameters:

	pNode	the node in the mesh at which this junction is located
	pPurkinjeCell	the Purkinje cell
	pCardiacCell	the ventricular cell
	resistance	the junction resistance, in kilo-Ohms

Definition at line 121 of file AbstractPurkinjeCellFactory.cpp.

References AbstractElement< ELEMENT_DIM, SPACE_DIM >::GetAttribute(), HeartConfig::GetPurkinjeSurfaceAreaToVolumeRatio(), AbstractCardiacCellInterface::GetStimulusFunction(), HeartConfig::Instance(), AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mpMixedDimensionMesh, and AbstractCardiacCellInterface::SetStimulusFunction().

Referenced by AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreateJunctionFromFile().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreateJunctionFromFile	(	const Node< SPACE_DIM > *	pNode,
		AbstractCardiacCellInterface *	pPurkinjeCell,
		AbstractCardiacCellInterface *	pCardiacCell
	)			`[inline, protected]`

Returns:: a newly created purkinje-ventricular junction between the two cells provided if the junction is defined in the corresponding .pvj file.

ReadJunctionsFile() must be called before calling this method

Parameters:

	pNode	the node in the mesh at which this junction is located
	pPurkinjeCell	the Purkinje cell
	pCardiacCell	the ventricular cell

Definition at line 215 of file AbstractPurkinjeCellFactory.cpp.

References AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreateJunction(), Node< SPACE_DIM >::GetIndex(), and AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mJunctionMap.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

AbstractCardiacCellInterface * AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreatePurkinjeCellForNode	(	Node< SPACE_DIM > *	pNode,
		AbstractCardiacCellInterface *	pCardiacCell
	)			`[inline]`

Returns:: a newly created cell object for the given node.

The default implementation checks whether the node is in a Purkinje node, in which case it calls CreatePurkinjeCellForTissueNode (which must be defined by subclasses), otherwise it returns a pointer to a (unique) fake cell

Parameters:

	pNode	pointer to node
	pCardiacCell	the cardiac cell that has already been created at this node

Definition at line 188 of file AbstractPurkinjeCellFactory.cpp.

References AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreatePurkinjeCellForTissueNode(), Node< SPACE_DIM >::GetIndex(), AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mLocalPurkinjeNodes, AbstractCardiacCellFactory< ELEMENT_DIM, SPACE_DIM >::mpSolver, and AbstractCardiacCellFactory< ELEMENT_DIM, SPACE_DIM >::mpZeroStimulus.

Referenced by AbstractCardiacTissue< ELEMENT_DIM, SPACE_DIM >::AbstractCardiacTissue().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM = ELEMENT_DIM>

virtual AbstractCardiacCellInterface* AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreatePurkinjeCellForTissueNode	(	Node< SPACE_DIM > *	pNode,
		AbstractCardiacCellInterface *	pCardiacCell
	)			`[protected, pure virtual]`

Returns:: a newly created purkinje cells for the given node. Must be overridden by subclasses to return a Purkinje cell object for the given node.

Parameters:

	pNode	pointer to node object
	pCardiacCell	the cardiac cell that has already been created at this node

Referenced by AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::CreatePurkinjeCellForNode().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM = ELEMENT_DIM>

virtual void AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::FinalisePurkinjeCellCreation	(	std::vector< AbstractCardiacCellInterface * > *	pPurkinjeCellsDistributed,
		unsigned	lo,
		unsigned	hi
	)			`[inline, virtual]`

May be overridden by subclasses to perform any necessary work after all Purkinje cells have been created.

Parameters:

	pPurkinjeCellsDistributed	Pointer to a vector of Purkinje cell pointers.
	lo	Lowest index owned by this process.
	hi	Highest index owned by this process.

Definition at line 139 of file AbstractPurkinjeCellFactory.hpp.

Referenced by AbstractCardiacTissue< ELEMENT_DIM, SPACE_DIM >::AbstractCardiacTissue().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

MixedDimensionMesh< ELEMENT_DIM, SPACE_DIM > * AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::GetMixedDimensionMesh ( ) [inline]

Returns:: the mixed dimension mesh (for possible use in CreatePurkinjeCellForTissueNode()). Note: GetMesh() just returns a pointer to an AbstractTetrahedralMesh.

Definition at line 205 of file AbstractPurkinjeCellFactory.cpp.

References EXCEPTION, and AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mpMixedDimensionMesh.

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::ReadJunctionsFile ( ) [inline, private]

Reads in node id and resistance values of junction nodes

The .pvj file path is specified by HeartConfig::Instance()->GetMeshFileName() + ".pvj"

Note, this is called by SetMesh

Definition at line 53 of file AbstractPurkinjeCellFactory.cpp.

References RelativeTo::AbsoluteOrCwd, EXCEPTION, FileFinder::Exists(), FileFinder::GetAbsolutePath(), HeartConfig::GetMeshName(), HeartConfig::Instance(), AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mJunctionMap, and AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::mpMixedDimensionMesh.

Referenced by AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::SetMesh().

template<unsigned ELEMENT_DIM, unsigned SPACE_DIM>

void AbstractPurkinjeCellFactory< ELEMENT_DIM, SPACE_DIM >::SetMesh ( AbstractTetrahedralMesh< ELEMENT_DIM, SPACE_DIM > * pMesh ) [inline, virtual]
