CellId Class Reference

#include <CellId.hpp>

Inherits AbstractCellProperty.

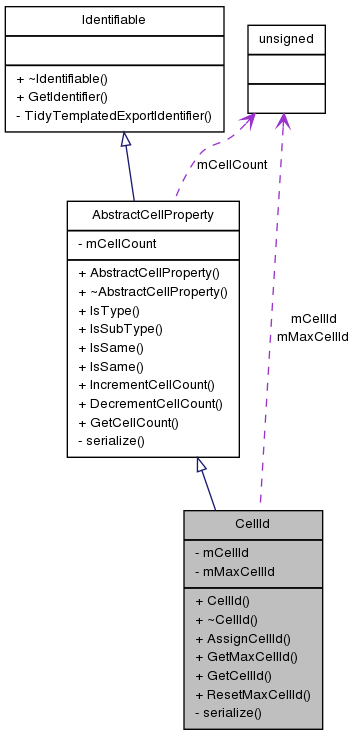

Collaboration diagram for CellId:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 CellId ()
virtual ~CellId ()
void AssignCellId ()
unsigned GetMaxCellId () const
unsigned GetCellId () const

Static Public Member Functions

static void ResetMaxCellId ()

Private Member Functions

template<class Archive >
void serialize (Archive &archive, const unsigned int version)

Private Attributes

unsigned mCellId

Static Private Attributes

static unsigned mMaxCellId = 0

Friends

class boost::serialization::access

Detailed Description

Cell id class.

Each Cell owns a CellPropertyCollection, which may include a shared pointer to an object of this type. When a Cell divides a new object is created with the new cell id.

The CellId object that stores the value of a the cell identifier.

Definition at line 57 of file CellId.hpp.

Constructor & Destructor Documentation

CellId::CellId (  )

Constructor.

This doesn't do anything and AssignCellId must be called before doing anything

Definition at line 41 of file CellId.cpp.

References mCellId, and UNSIGNED_UNSET.

CellId::~CellId (  )  [virtual]

Destructor.

Definition at line 47 of file CellId.cpp.

Member Function Documentation

void CellId::AssignCellId (  )

This assigns the cell id to be the maximum current cell id. It then increments mMaxCellId.

Definition at line 51 of file CellId.cpp.

References PetscTools::GetMyRank(), PetscTools::GetNumProcs(), mCellId, and mMaxCellId.

unsigned CellId::GetCellId (  )  const
Returns:
mCellId.

Definition at line 57 of file CellId.cpp.

References EXCEPTION, mCellId, and UNSIGNED_UNSET.

unsigned CellId::GetMaxCellId (  )  const
Returns:
the maximum value of the cell identifier

Definition at line 66 of file CellId.cpp.

References EXCEPTION, mCellId, mMaxCellId, and UNSIGNED_UNSET.

void CellId::ResetMaxCellId (  )  [static]

Reset the maximum cell id to zero.

Definition at line 75 of file CellId.cpp.

References mMaxCellId.

Referenced by AbstractCellBasedTestSuite::setUp().

template<class Archive >
void CellId::serialize ( Archive &  archive,
const unsigned int  version
) [inline, private]

Archive the member variables.

Parameters:
archive the archive
version the current version of this class

Reimplemented from AbstractCellProperty.

Definition at line 78 of file CellId.hpp.

References PetscTools::IsParallel(), mCellId, and mMaxCellId.

Friends And Related Function Documentation

friend class boost::serialization::access [friend]

Needed for serialization.

Reimplemented from AbstractCellProperty.

Definition at line 70 of file CellId.hpp.

Member Data Documentation

unsigned CellId::mCellId [private]

Cell Id

Definition at line 64 of file CellId.hpp.

Referenced by AssignCellId(), CellId(), GetCellId(), GetMaxCellId(), and serialize().

unsigned CellId::mMaxCellId = 0 [static, private]

maximum cell identifier.

Definition at line 67 of file CellId.hpp.

Referenced by AssignCellId(), GetMaxCellId(), ResetMaxCellId(), and serialize().

The documentation for this class was generated from the following files:
